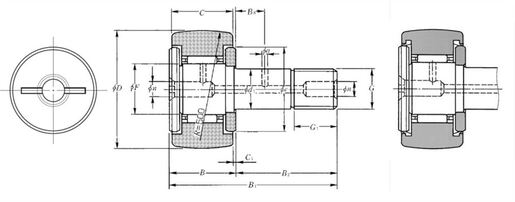

D - External diameter85 mm
d1 - Stud diameter30 mm
C - Width of bearing, drawn cup or outer ring35 mm
F - Under roller diameter38 mm
B - Bearing/Inner ring width37 mm
B1 - Total stud length100 mm
B2 - Stud rod length63 mm
G - Stud thread designationM30X1.5
G1 - Thread length of the stud32 mm
B3 - Distance between washer face and radial lub hole15 mm
C1 - Distance between roller face and washer face1 mm
n - Axial lubrication hole diameter8 mm
a - Radial lubrication hole diameter4 mm
e - Inlet diameter of roller or washer53 mm
R - Track roller radius500 mm
Torque máximo360 N-m
Rolamento com/sem gaiolaCom
Classe de folga radialCN
Classe de precisãoP0
Peso1,74 kg
Product classification image
Cr - Dynamic load rating45 kN
C0r - Static load rating88,5 kN
Track load capacity spherical outer ring10,4 kN
Nlim - Grease lubrication limit speed4000 tr/min
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação100 °C
