Folha de dados técnica

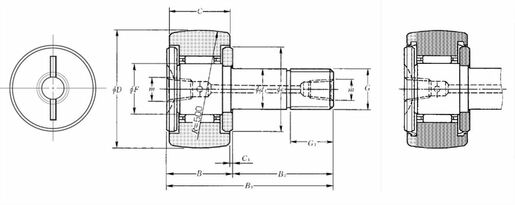

| CARACTERÍSTICAS TÉCNICAS | |
|---|---|
| Marca | NTN |
| D - External diameter | 35 mm |
| d1 - Stud diameter | 16 mm |
| C - Width of bearing, drawn cup or outer ring | 18 mm |
| F - Under roller diameter | 18 mm |
| B - Bearing/Inner ring width | 19 mm |
| B1 - Total stud length | 52 mm |
| B2 - Stud rod length | 32,5 mm |
| G - Stud thread designation | M16X1.5 |
| G1 - Thread length of the stud | 17 mm |
| C1 - Distance between roller face and washer face | 0,8 mm |
| m - Designation of the threaded lubrication hole | PT 1/8 |
| e - Inlet diameter of roller or washer | 27 mm |
| R - Track roller radius | 500 mm |
| Torque máximo | 52 N-m |
| Rolamento com/sem gaiola | Com |
| Classe de folga radial | CN |
| Classe de precisão | P0 |
| Peso | 0,169 kg |
| DESEMPENHO | |
|---|---|
| Cr - Dynamic load rating | 12,2 kN |
| C0r - Static load rating | 17,9 kN |
| Track load capacity spherical outer ring | 3,2 kN |
| Nlim - Grease lubrication limit speed | 8000 tr/min |
| Tmin - Temperatura mín de operação | -20 °C |
| Tmax - Temperatura máx de operação | 100 °C |
