Rolamento de agulha, anel interno, dimensões em polegadas
Conecte-se
Adcionar este produto ao seu cestaDocumentation
Product information
| CARACTERÍSTICAS TÉCNICAS | |
|---|---|
| Marca | NTN |

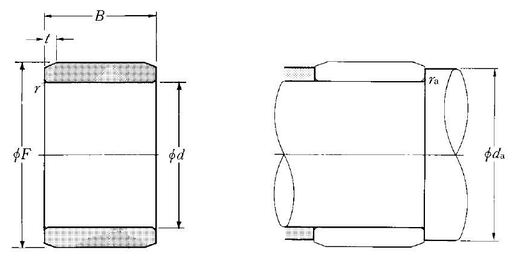

| d - Internal diameter | 31,75 mm |
| B - Bearing/Inner ring width | 32 mm |
| F - Under roller diameter | 38,1 mm |
| rs - Min fillet radius | 1,5 mm |
| Furo de lubrificação no anel interno | Non/No |
| Classe de precisão | P0 |
| Peso | 0,094 kg |
| RECOMENDACOES DE BARREIRA | |
|---|---|
| da min - Min shoulder diameter IR | 37 mm |
| ras max - Max shaft & housing fillet radius | 1,5 mm |
