NKXR17T2 - NTN

NKXR17T2
NKXR17T2
NKXR17T2
NKXR17T2

Downloads

Arquivo 3D

Folha de dados técnica

FAÇA LOGIN para adicionar produtos à sua cesta
Contate-Nos
CARACTERÍSTICAS TÉCNICAS
MarcaNTN
Fw - Under rollers diameter17 mm
dw - Shaft washer bore diameter17 mm
D - External diameter26 mm
D1 - Outer diameter of washer30 mm
C - Width of bearing, drawn cup or outer ring25 mm
C1 - Thrust bearing height9 mm
C2 - Hole location8 mm
a - Thrust bearing support diameter25,7 mm
rs - Min fillet radius0,3 mm
Furo de lubrificação no anel externoSim
k - Hole diameter2,5 mm
Classe de precisãoP0
Peso0,05 kg

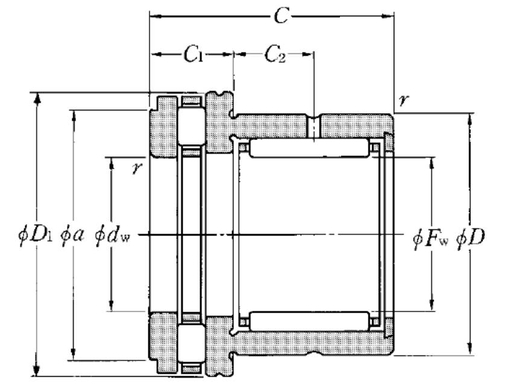

Product classification image
DESEMPENHO
Cr - Dynamic load rating10,4 kN
Ca - Dynamic axial load rating12,7 kN
C0r - Static load rating14,4 kN
C0a - Static axial load rating29 kN
Nlim - Grease lubrication limit speed2500 tr/min
Nlim - Oil lubrication limit speed10000 tr/min
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação120 °C

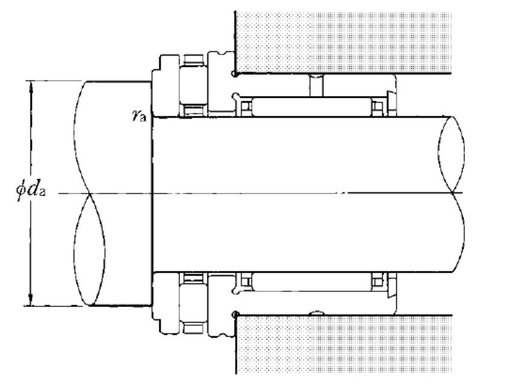

RECOMENDACOES DE BARREIRA
da min - Min shoulder diameter IR27 mm
ras max - Max shaft & housing fillet radius0,3 mm
Product classification image
