Rolamentos combinados

NKXR50T2 - NTN

NKXR50T2

Documentation

Product information

CARACTERÍSTICAS TÉCNICAS
MarcaNTN

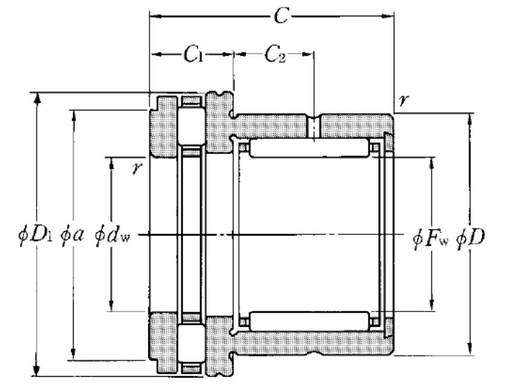

Fw - Under rollers diameter50 mm
dw - Shaft washer bore diameter50 mm
D - External diameter62 mm
D1 - Outer diameter of washer70 mm
C - Width of bearing, drawn cup or outer ring35 mm
C1 - Thrust bearing height14 mm
C2 - Hole location10 mm
a - Thrust bearing support diameter65,5 mm
rs - Min fillet radius0,6 mm
Furo de lubrificação no anel externoOui/Yes
k - Hole diameter3 mm
Classe de precisãoP0
Peso0,309 kg
undefined
DESEMPENHO
Cr - Dynamic load rating27,9 kN
Ca - Dynamic axial load rating48,5 kN
C0r - Static load rating62 kN
C0a - Static axial load rating150 kN
N lim - Grease lubrication limit speed1000 tr/min
N lim - Oil lubrication limit speed4000 tr/min
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação120 °C

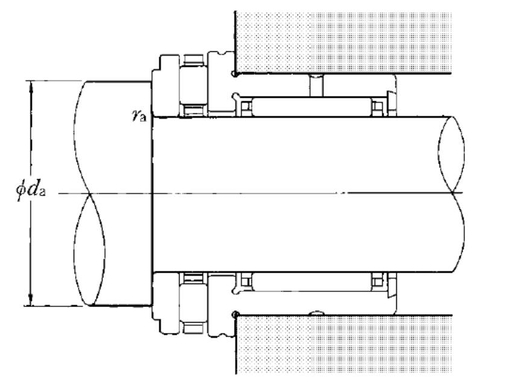

RECOMENDACOES DE BARREIRA
da min - Min shoulder diameter IR66 mm
ras max - Max shaft & housing fillet radius0,6 mm
