WS81120 - NTN

WS81120

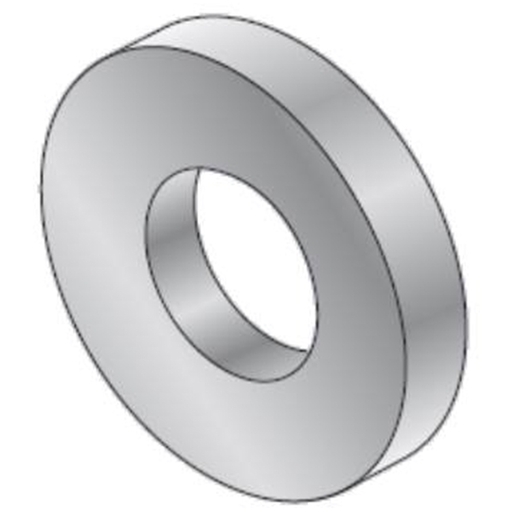

Rolamento de agulha, rolamento axial de rolos de agulha, anel interno

Downloads

Arquivo 3D

Folha de dados técnica

FAÇA LOGIN para adicionar produtos à sua cesta
Contate-Nos
CARACTERÍSTICAS TÉCNICAS
MarcaNTN

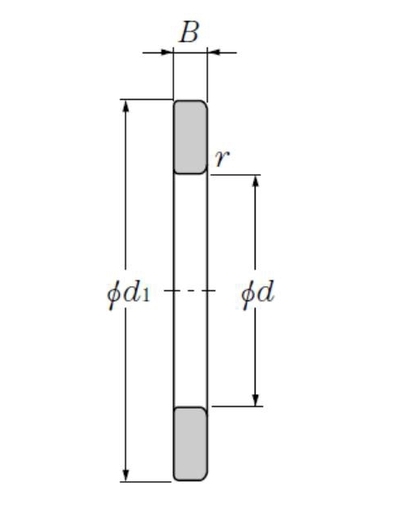

d - Bore diameter of support washer IR - WS100 mm
d1 - External diameter of support washer IR - WS135 mm
B - Ring thickness7 mm
rs - Min fillet radius1 mm
Bearing ring (inner ring) WS mass0,35 kg
Product classification image
DESEMPENHO
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação120 °C
