Anilhas

WS89322 - NTN

WS89322

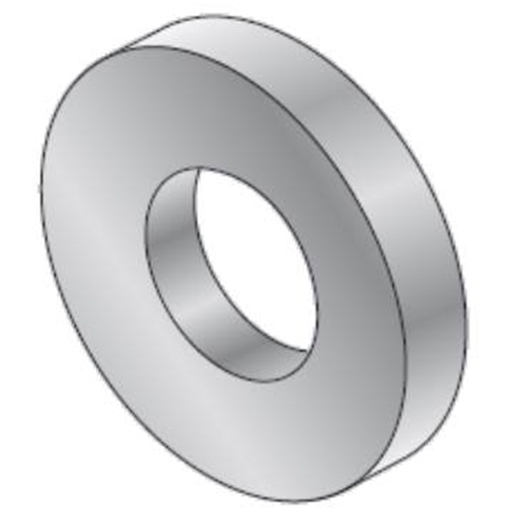

Rolamento de agulha, rolamento axial de rolos de agulha, anel interno

Documentation

Product information

CARACTERÍSTICAS TÉCNICAS
MarcaNTN

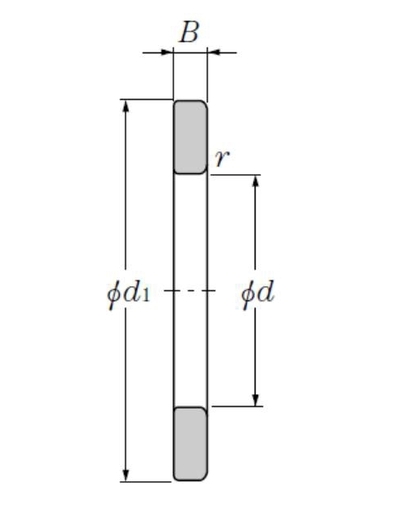

d - Bore diameter of support washer IR - WS110 mm
d1 - External diameter of support washer IR - WS190 mm
B - Ring thickness16,5 mm
rs - Min fillet radius2 mm
Bearing ring (inner ring) WS mass2,44 kg
undefined
DESEMPENHO
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação120 °C
