Scheda tecnica
Specifica

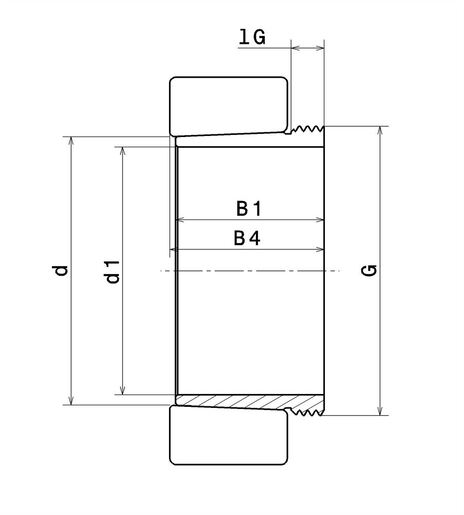

CARATTTERISTICHE TECNICHE | |
|---|---|
| d1 | 50 mm |
| d | 55 mm |
| B1 | 54 mm |
| B4 | 57 mm |
| G | M60X2 |
| IG | 10 mm |
| Designation of the associated nut | KM12 |
| Designation of the associated blocking device | MB10 |
| Designation of the nut | KM10 |
| Associated bearing | 22311, 2311 |
| Designation of the associated hydraulic nut | HMV12 EBF |
| Tipo di alesaggio | Tapered 1:12 |
| Peso | 0,25 kg |
| Marchio | SNR |
