Scheda tecnica
Specifica

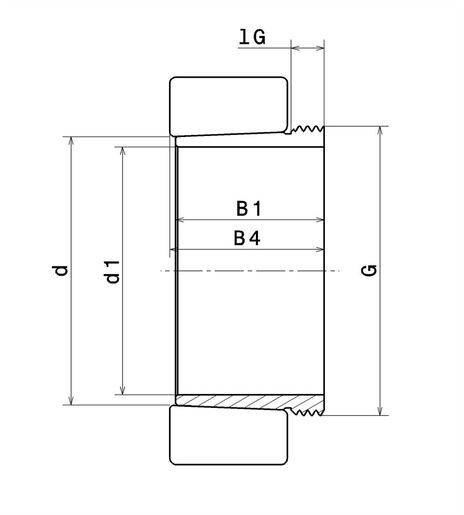

CARATTTERISTICHE TECNICHE | |
|---|---|
| d1 | 85 mm |
| d | 90 mm |
| B1 | 63 mm |
| B4 | 67 mm |
| G | M100X2 |
| IG | 10 mm |
| Designation of the associated nut | KM20 |
| Designation of the associated blocking device | MB17 |
| Designation of the nut | KM17 |
| Associated bearing | 23218 |
| Designation of the associated hydraulic nut | HMV20 EBF |
| Tipo di alesaggio | Tapered 1:12 |
| Peso | 0,58 kg |
| Marchio | SNR |
