Scheda tecnica
Specifica

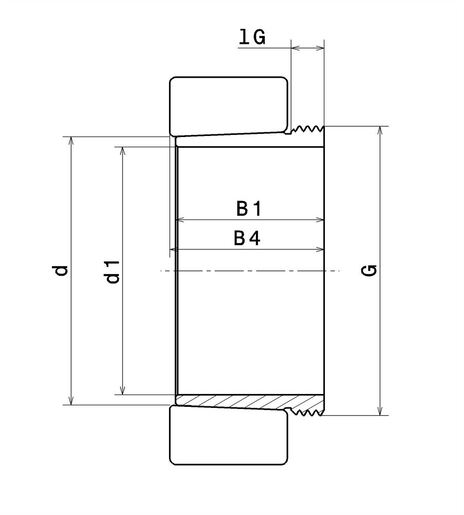

CARATTTERISTICHE TECNICHE | |
|---|---|
| d1 | 145 mm |
| d | 150 mm |
| B1 | 114 mm |
| B4 | 119 mm |
| G | M160X3 |
| IG | 17 mm |
| Designation of the associated nut | KM32 |
| Designation of the associated blocking device | MB28 |
| Designation of the nut | KM28 |
| Associated bearing | 23230 |
| Designation of the associated hydraulic nut | HMV32 EBF |
| Tipo di alesaggio | Tapered 1:12 |
| Peso | 2,12 kg |
| Marchio | SNR |
