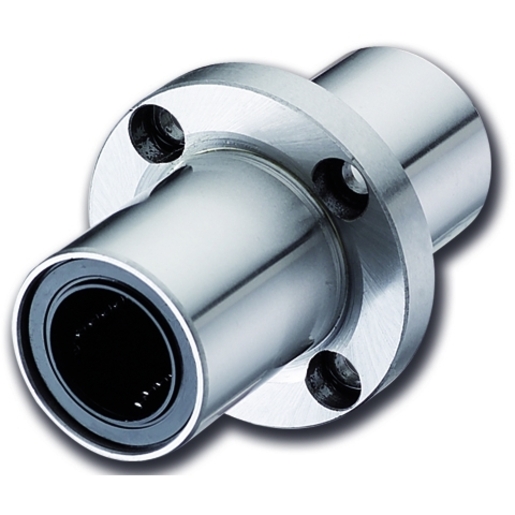

BBERMS30UU - SNR

BBERMS30UU

Flanged ball bushings are a useful addition to the standard ball bushings. The integrated flange design enables a more efficient arrangement of the housing or mounting holes. The flanged ball bushings are economical, because fewer components are required and altogether the installation is easier. The replacement of the ball bushings is easier.

Scarica

CAD file

Scheda tecnica

Accedi per aggiungere i prodotti al carrello
Contattaci
Specifica

CARATTTERISTICHE TECNICHE

Design type BBER
Ball bushings category Flange type ball bushings
Marchio SNR
Standard ISO dimension
Number of seals 2
Material outer cylinder or steel segments X105CrMo17
Material Cage PA
Grease filled no

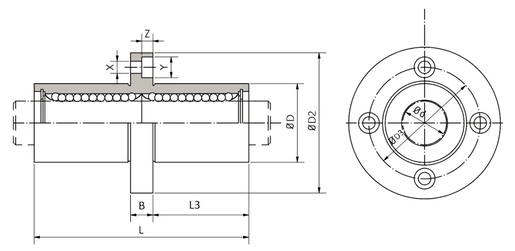

d 30 mm
Internal diameter tolerance (d) 0,013/-0,002
ØD 47 mm
External diameter tolerance (D) 0/-0,019
Length (L) 123 mm
Length tolerance (L) 0,3/-0,3
B 10 mm
ØD2 76 mm
L3 56,5 mm
ØD3 62 mm
X 6,6 mm
Y 11 mm
Z 6,1 mm
Maximum eccentricity 17000 mm
Number of ball rows 6
Peso 0,815 kg
Product classification image

PRESTAZIONI

Cmin 2600000 kN
Cmax 3328000 kN
C0min 5490000 kN
C0max 7027000 kN
Permissible static Moment My 78 N/m
Temp min di funzionamento (Tmin) -20 °C
Temp max di funzionamento (Tmax) 80 °C
