Technisches Datenblatt
Spezifikationen

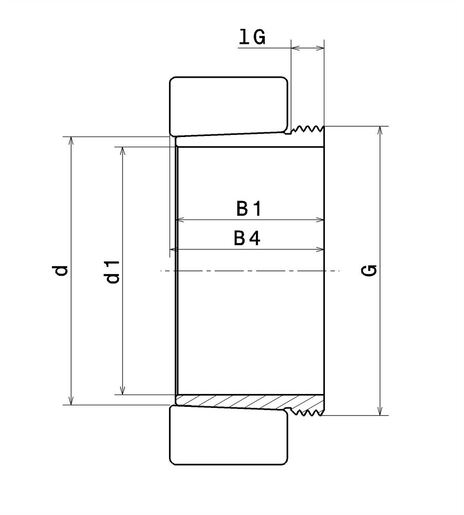

TECHNISCHE EIGENSCHAFTEN | |
|---|---|
| d1 | 50 mm |
| d | 55 mm |
| B1 | 37 mm |
| B4 | 40 mm |
| G | M60X2 |
| IG | 7 mm |
| Designation of the associated nut | KM12 |
| Designation of the associated blocking device | MB10 |
| Designation of the nut | KM10 |
| Associated bearing | 21311, 22211, 1311, 2211 |
| Designation of the associated hydraulic nut | HMV12 EBF |
| Bohrung | Tapered 1:12 |
| Masse | 0,16 kg |
| Marke | SNR |
