Technisches Datenblatt
Spezifikationen

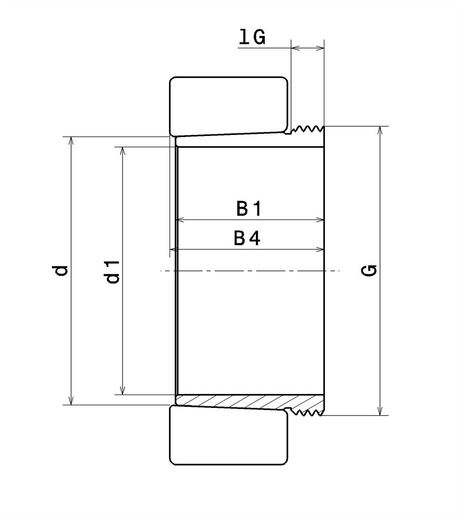

TECHNISCHE EIGENSCHAFTEN | |
|---|---|
| d1 | 115 mm |
| d | 120 mm |
| B1 | 75 mm |
| B4 | 79 mm |
| G | M130X2 |
| IG | 12 mm |
| Designation of the associated nut | KM26 |
| Designation of the associated blocking device | MB22 |
| Designation of the nut | KM22 |
| Associated bearing | 22224, 23124 |
| Designation of the associated hydraulic nut | HMV26 EBF |
| Bohrung | Tapered 1:12 |
| Masse | 0,95 kg |
| Marke | SNR |
