Technisches Datenblatt
Spezifikationen

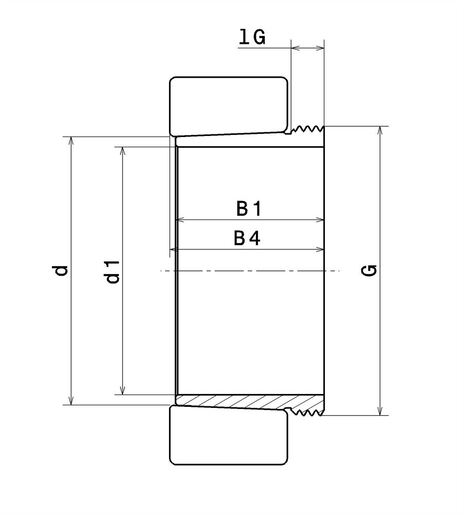

TECHNISCHE EIGENSCHAFTEN | |
|---|---|
| d1 | 85 mm |
| d | 90 mm |
| B1 | 53 mm |
| B4 | 57 mm |
| G | M100X2 |
| IG | 9 mm |
| Designation of the associated nut | KM20 |
| Designation of the associated blocking device | MB17 |
| Designation of the nut | KM17 |
| Associated bearing | 21318, 22218, 1318, 2218 |
| Designation of the associated hydraulic nut | HMV20 EBF |
| Bohrung | Tapered 1:12 |
| Masse | 0,46 kg |
| Marke | SNR |
