Ficha técnica
Espec.

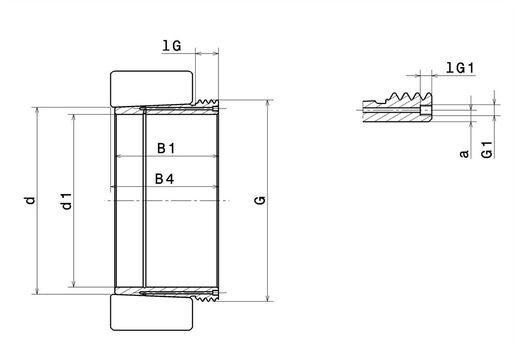

CARACTERÍSTICAS TÉCNICAS | |
|---|---|
| d1 | 280 mm |
| d | 300 mm |
| B1 | 192 mm |
| B4 | 200 mm |
| G | Tr320X5 |
| IG | 30 mm |
| G1 | G1/4 |
| IG1 | 15 mm |
| a | 9 mm |
| Designation of the associated nut | HM3164 |
| Designation of the associated blocking device | MB56 |
| Designation of the nut | HM56T |
| Associated bearing | 23160 |
| Designation of the associated hydraulic nut | HMV64 EBF |
| Tipo de diámetro interior | Tapered 1:12 |
| Peso | 20,4 kg |
| Marca | SNR |
