BBERS16LAUU - SNR

BBERS16LAUU

Flanged ball bushings are a useful addition to the standard ball bushings. The integrated flange design enables a more efficient arrangement of the housing or mounting holes. The flanged ball bushings are economical, because fewer components are required and altogether the installation is easier. The replacement of the ball bushings is easier.

Descargas

Fichero CAD

Ficha técnica

POR FAVOR REGÍSTRESE para añadir productos a su cesta
Contacte con nosotros
Espec.

CARACTERÍSTICAS TÉCNICAS

Design type BBER
Ball bushings category Flange type ball bushings
Marca SNR
Standard ISO dimension
Number of seals 2
Material outer cylinder or steel segments X105CrMo17
Material Cage X5CrNi18-10
Grease filled no

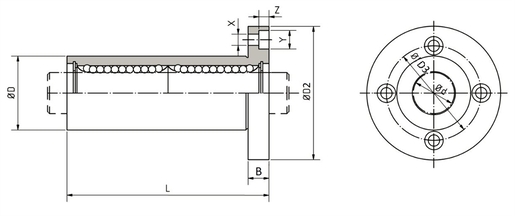

d 16 mm
Internal diameter tolerance (d) 0,011/-0,001
ØD 26 mm
External diameter tolerance (D) 0/-0,016
Length (L) 68 mm
Length tolerance (L) 0,3/-0,3
B 6 mm
ØD2 46 mm
ØD3 36 mm
X 4,5 mm
Y 7,5 mm
Z 4,1 mm
Maximum eccentricity 15000 mm
Number of ball rows 4
Peso 0,16 kg
Product classification image

PRESTACIONES

Cmin 710000 kN
Cmax 1004000 kN
C0min 1780000 kN
C0max 2517000 kN
Permissible static Moment My 14 N/m
Temperatura mínima (Tmin) -20 °C
Temperatura máxima (Tmax) 140 °C
