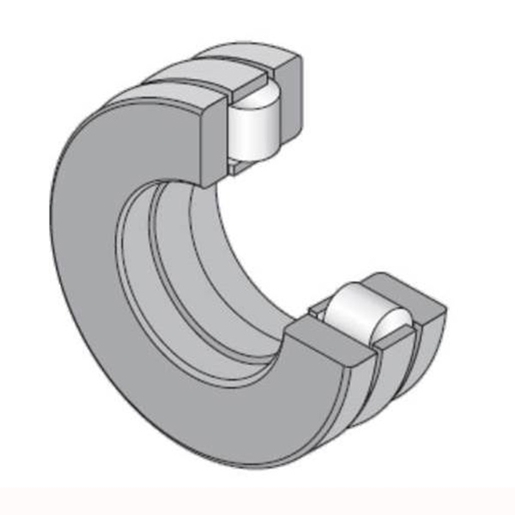

Rolamento de agulha, rolamento axial de rolos cilíndricos, série 811
Arquivo 3D
Folha de dados técnica

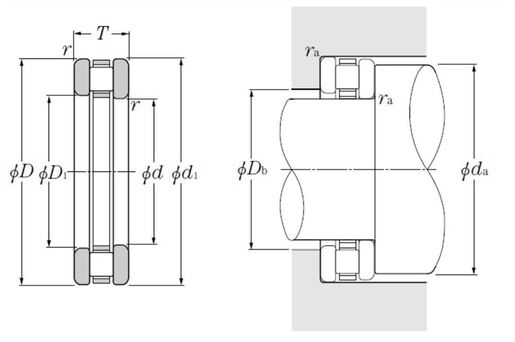

| CARACTERÍSTICAS TÉCNICAS | |
|---|---|
| Marca | NTN |
| d - Bore diameter of support washer IR - WS | 20 mm |
| D - Outside diameter of support washer OR - GS | 35 mm |
| d1 - External diameter of support washer IR - WS | 35 mm |
| D1 - Bore diameter bearing washer OR - GS | 21 mm |
| T - Thrust bearing height | 10 mm |
| Dw - Rolling element diameter | 4,5 mm |
| Dc1 - Roller cage bore diameter | 20 mm |
| Dc - Roller cage outer diameter | 35 mm |
| rs - Min fillet radius | 0,3 mm |
| Cage assembly reference | K81104T2 |
| Bearing ring (inner ring) WS | WS81104 |
| Bearing ring (outer ring) GS | GS81104 |
| Ea - Rollers reference outer diameter | 32,3 mm |
| Eb - Rollers reference inner diameter | 22,4 mm |
| Peso | 0,04 kg |
| Cage assembly mass | 0,012 kg |
| Bearing ring (inner ring) WS mass | 0,014 kg |
| Bearing ring (outer ring) GS mass | 0,014 kg |
| DESEMPENHO | |
|---|---|
| Ca - Dynamic axial load rating | 20,2 kN |
| C0a - Static axial load rating | 46,5 kN |
| Cua - Limit axial load rating | 5,65 kN |
| Nlim - Grease lubrication limit speed | 2100 tr/min |
| Nlim - Oil lubrication limit speed | 8500 tr/min |
| Tmin - Temperatura mín de operação | -20 °C |
| Tmax - Temperatura máx de operação | 120 °C |
| RECOMENDACOES DE BARREIRA | |
|---|---|
| da min - Min shoulder diameter IR | 32 mm |
| Db max - Max OR shoulder diameter | 23 mm |
| ras max - Max shaft & housing fillet radius | 0,3 mm |
