Product information
| CARACTERÍSTICAS TÉCNICAS | |
|---|---|
| Marca | SNR |

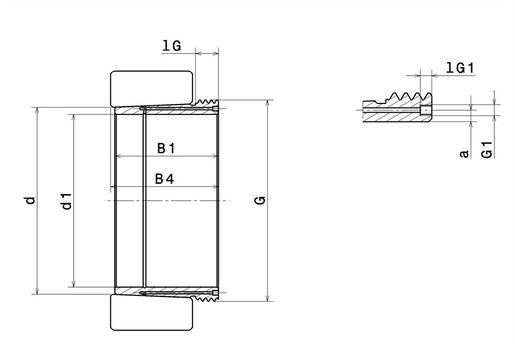

| d1 - Sleeve bore diameter | 200 mm |
| d - Internal diameter | 220 mm |
| B1 - Sleeve length | 170 mm |
| B4 - Overall dismantling length | 184 mm |
| G - Thread designation | Tr230X4 |
| lG - Sleeve thread length | 20 mm |
| G1 - Designation of tapping holes for oil injection | G1/8 |
| lG1 - Tapping length of oil injection holes | 12 mm |
| a - Distance to bore of oil injection hole | 6,5 mm |
| Peso | 10,2 kg |
| CARACTERÍSTICAS TÉCNICAS | |
|---|---|
| Associated bearing | 24144 |
| Tipo de diâmetro | Conique 1:30 |
| CROSS SELLING | |
|---|---|
| Designation of the associated nut | HM46T |
| Designation of the associated blocking device | MB40 |
| Designation of the nut | KM40 |
| Designation of the associated hydraulic nut | HMV46 EBF |
