Folha de dados técnica
| CARACTERÍSTICAS TÉCNICAS | |
|---|---|
| Marca | NTN |

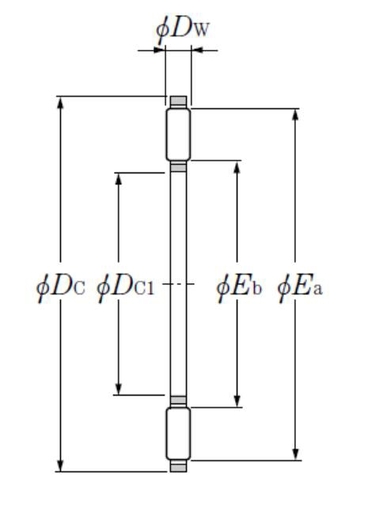

| Dc1 - Roller cage bore diameter | 35 mm |
| Dc - Roller cage outer diameter | 52 mm |
| Dw - Rolling element diameter | 2 mm |
| Bearing ring (washer) AS | AS1107 |
| Bearing ring (inner ring) WS | WS81107 |
| Bearing ring (outer ring) GS | GS81107 |
| Ea - Rollers reference outer diameter | 49,4 mm |
| Eb - Rollers reference inner diameter | 39,5 mm |
| Cage assembly mass | 0,01 kg |
| DESEMPENHO | |
|---|---|
| Ca - Dynamic axial load rating | 17,8 kN |
| C0a - Static axial load rating | 81,5 kN |
| Cua - Limit axial load rating | 9,9 kN |
| Nlim - Grease lubrication limit speed | 1400 tr/min |
| Nlim - Oil lubrication limit speed | 5500 tr/min |
| Tmin - Temperatura mín de operação | -20 °C |
| Tmax - Temperatura máx de operação | 120 °C |
