Folha de dados técnica
| CARACTERÍSTICAS TÉCNICAS | |
|---|---|
| Marca | NTN |

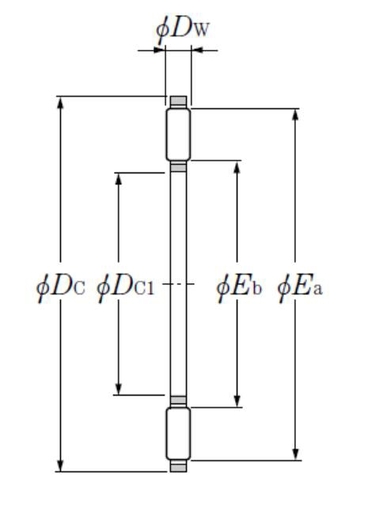

| Dc1 - Roller cage bore diameter | 75 mm |
| Dc - Roller cage outer diameter | 100 mm |
| Dw - Rolling element diameter | 4 mm |
| Bearing ring (washer) AS | AS1115 |
| Bearing ring (inner ring) WS | WS81115 |
| Bearing ring (outer ring) GS | GS81115 |
| Ea - Rollers reference outer diameter | 96,4 mm |
| Eb - Rollers reference inner diameter | 80,5 mm |
| Cage assembly mass | 0,061 kg |
| DESEMPENHO | |
|---|---|
| Ca - Dynamic axial load rating | 55 kN |
| C0a - Static axial load rating | 266 kN |
| Cua - Limit axial load rating | 32,5 kN |
| Nlim - Grease lubrication limit speed | 700 tr/min |
| Nlim - Oil lubrication limit speed | 2700 tr/min |
| Tmin - Temperatura mín de operação | -20 °C |
| Tmax - Temperatura máx de operação | 120 °C |
