AXK1118 - NTN

AXK1118

Downloads

Arquivo 3D

Folha de dados técnica

FAÇA LOGIN para adicionar produtos à sua cesta
Contate-Nos
CARACTERÍSTICAS TÉCNICAS
MarcaNTN

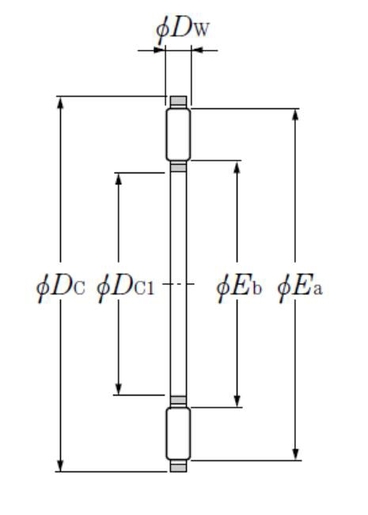

Dc1 - Roller cage bore diameter90 mm
Dc - Roller cage outer diameter120 mm
Dw - Rolling element diameter4 mm
Bearing ring (washer) ASAS1118
Bearing ring (inner ring) WSWS81118
Bearing ring (outer ring) GSGS81118
Ea - Rollers reference outer diameter116,4 mm
Eb - Rollers reference inner diameter96,5 mm
Cage assembly mass0,086 kg
Product classification image
DESEMPENHO
Ca - Dynamic axial load rating70,5 kN
C0a - Static axial load rating390 kN
Cua - Limit axial load rating46,5 kN
Nlim - Grease lubrication limit speed600 tr/min
Nlim - Oil lubrication limit speed2300 tr/min
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação120 °C
