ESEHE203T04 - SNR

ESEHE203T04

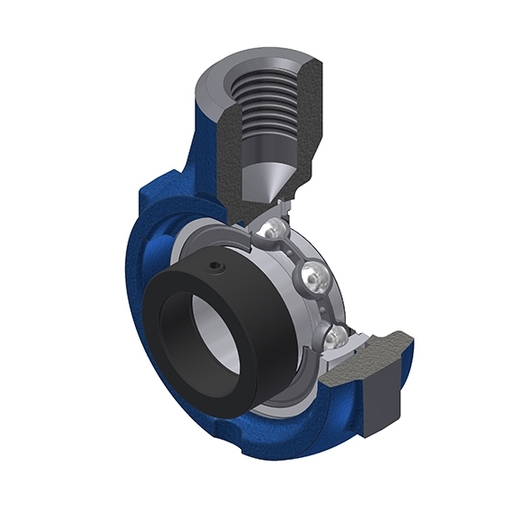

Corpo fundido cinzento,rolamentos de esferas com inserção radial com anel de trava excêntrico,junta de vedação com base simples, para aplicações em baixa temperatura

Mancais autoalinháveis com diversas opções de fixação e alojamentos feitos de ferro fundido, aço inoxidável ou plástico.

Este kit contém a (s) seguinte (s) referência (s)

Documentation

Product information

CARACTERÍSTICAS TÉCNICAS
MarcaSNR
A - Housing width25 mm
A230 mm
B1 - Overall width Inner Ring28,6 mm
d - Shaft diameter17 mm
d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve27,2 mm
E - Mounting hole thread depth21 mm
G - Grease fittingM6x1
G1 - Thread sizeM16
H - Housing length, width or diameter65 mm
L - Housing length91 mm
L1 - Distance attachment end face to bearing centerline58 mm
L3 - Length of guidance slot/face38 mm
S - Distance front side/bearing centre6,5 mm
undefined
DESEMPENHO
C - Dynamic load rating9,55 kN
C0 - Static load rating4,78 kN
Operating temperature min.-40 °C
Operating temperature max.100 °C
OUTRAS CARACTERÍSTICAS
Peso0,63 kg
Torque recomendado para fixação do parafuso de pressão5,5 N-m
