K81102T2 - NTN

K81102T2

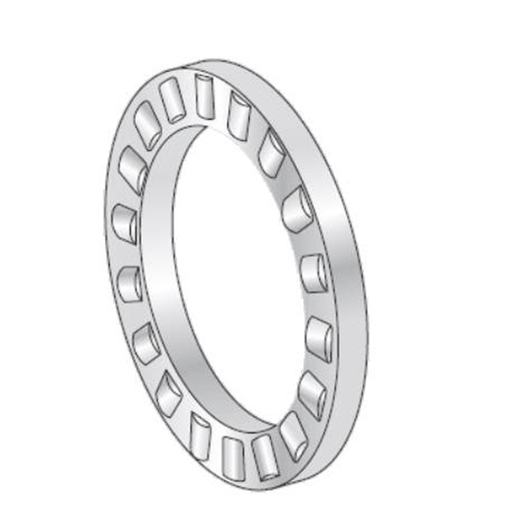

Rolamento de agulha, rolamento de rolos cilíndricos de impulso, montagem com gaiola, série K811

Downloads

Arquivo 3D

Folha de dados técnica

FAÇA LOGIN para adicionar produtos à sua cesta
Contate-Nos
CARACTERÍSTICAS TÉCNICAS
MarcaNTN

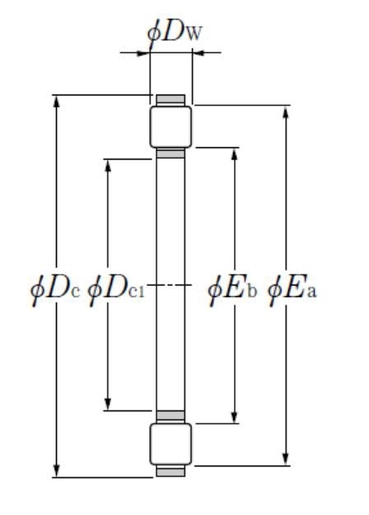

Dw - Rolling element diameter3,5 mm
Dc1 - Roller cage bore diameter15 mm
Dc - Roller cage outer diameter28 mm
Bearing ring (inner ring) WSWS81102
Bearing ring (outer ring) GSGS81102
Ea - Rollers reference outer diameter25 mm
Eb - Rollers reference inner diameter17,2 mm
Cage assembly mass0,006 kg
Product classification image
DESEMPENHO
Ca - Dynamic axial load rating12,9 kN
C0a - Static axial load rating28,6 kN
Cua - Limit axial load rating3,25 kN
Nlim - Grease lubrication limit speed2800 tr/min
Nlim - Oil lubrication limit speed11000 tr/min
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação120 °C
