K8X12X10T2 - NTN

K8X12X10T2

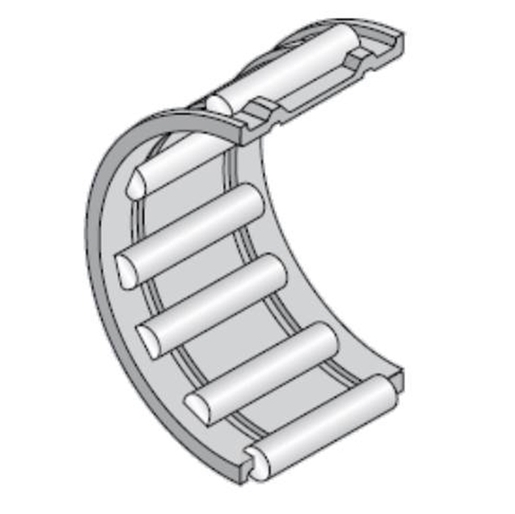

Rolamento de agulha, montagem da gaiola, gaiola de poliamida

Downloads

Arquivo 3D

Folha de dados técnica

FAÇA LOGIN para adicionar produtos à sua cesta
Contate-Nos
CARACTERÍSTICAS TÉCNICAS
MarcaNTN

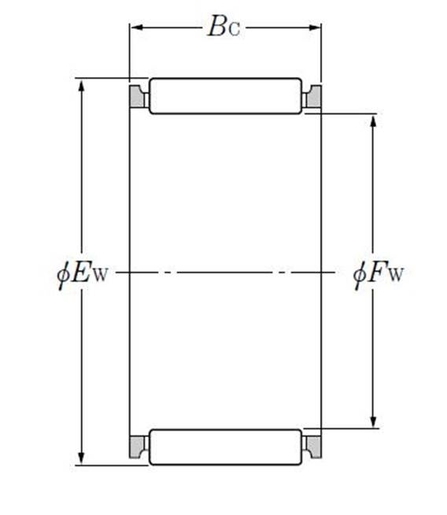

Fw - Under rollers diameter8 mm
Ew - Upper rollers diameter12 mm
Bc - Cage Width10 mm
Peso0,002 kg
Product classification image
DESEMPENHO
Cr - Dynamic load rating4,65 kN
C0r - Static load rating4,15 kN
Nlim - Grease lubrication limit speed21000 tr/min
Nlim - Oil lubrication limit speed32000 tr/min
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação120 °C
RECOMENDACOES DE BARREIRA
b - Raceway width10 mm
