NATV5/3AS - NTN

NATV5/3AS

Rolamento de agulha, rolo de apoio, rolo de apoio completo de rolos, com anel interno, anel externo esférico

Downloads

Arquivo 3D

Folha de dados técnica

FAÇA LOGIN para adicionar produtos à sua cesta
Contate-Nos
CARACTERÍSTICAS TÉCNICAS

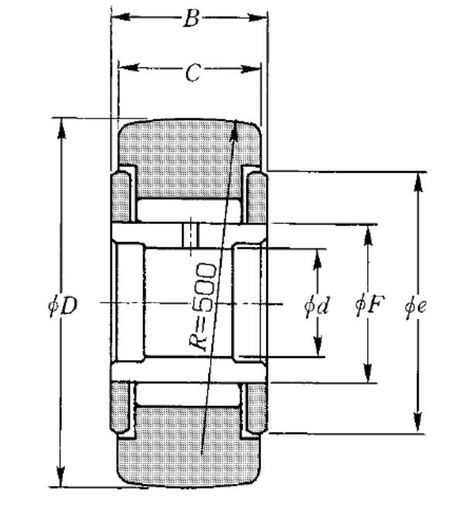

MarcaNTN
d - Internal diameter5 mm
D - External diameter16 mm
C - Width of bearing, drawn cup or outer ring11 mm
F - Under roller diameter8 mm
B - Bearing/Inner ring width12 mm
e - Inlet diameter of roller or washer12 mm
R - Track roller radius500 mm
Rolamento com/sem gaiolaSem
Classe de folga radialCN
Classe de precisãoP0
Peso0,02 kg

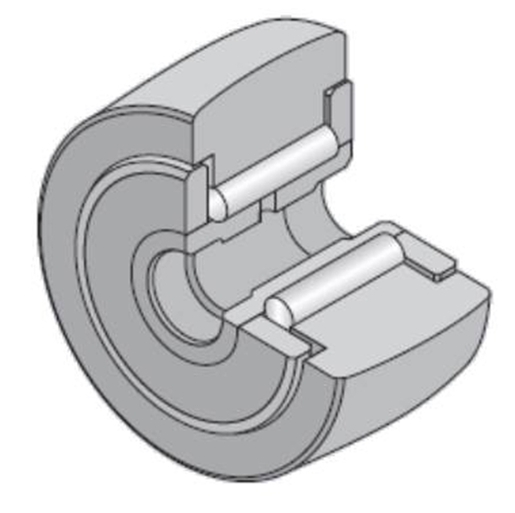

Product classification image
DESEMPENHO
Cr - Dynamic load rating6,5 kN
C0r - Static load rating9,35 kN
Track load capacity spherical outer ring1,08 kN
Nlim - Grease lubrication limit speed10000 tr/min
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação120 °C
