NKX12T2 - NTN

NKX12T2

Downloads

Arquivo 3D

Folha de dados técnica

FAÇA LOGIN para adicionar produtos à sua cesta
Contate-Nos
CARACTERÍSTICAS TÉCNICAS
MarcaNTN
Fw - Under rollers diameter12 mm
dw - Shaft washer bore diameter12 mm
D - External diameter21 mm
D1 - Outer diameter of washer26 mm
C - Width of bearing, drawn cup or outer ring23 mm
C1 - Thrust bearing height9 mm
C2 - Hole location6,5 mm
rs - Min fillet radius0,3 mm
Furo de lubrificação no anel externoSim
Classe de precisãoP0
Peso0,042 kg

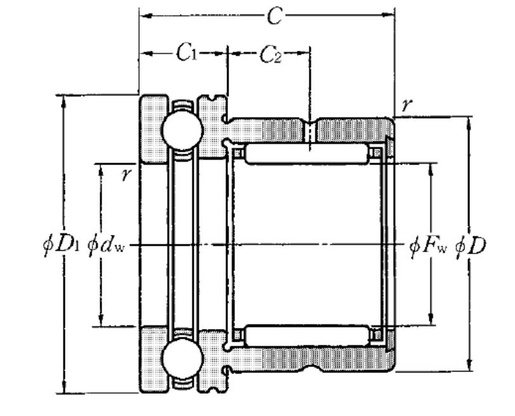

Product classification image
DESEMPENHO
Cr - Dynamic load rating6 kN
Ca - Dynamic axial load rating10,3 kN
C0r - Static load rating7,7 kN
C0a - Static axial load rating15,4 kN
Nlim - Grease lubrication limit speed6400 tr/min
Nlim - Oil lubrication limit speed9200 tr/min
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação120 °C

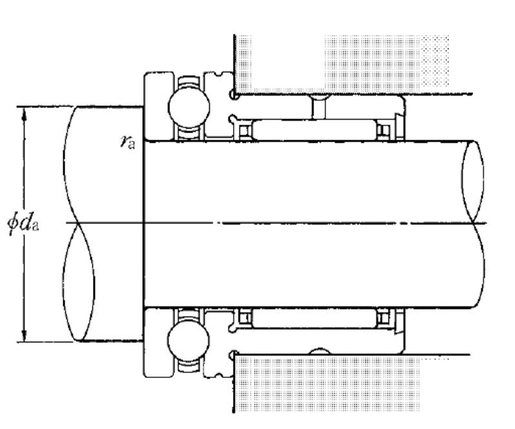

RECOMENDACOES DE BARREIRA
da min - Min shoulder diameter IR20 mm
ras max - Max shaft & housing fillet radius0,3 mm
Product classification image
