NKX45 - NTN

NKX45

Downloads

Arquivo 3D

Folha de dados técnica

FAÇA LOGIN para adicionar produtos à sua cesta
Contate-Nos
CARACTERÍSTICAS TÉCNICAS
MarcaNTN
Fw - Under rollers diameter45 mm
dw - Shaft washer bore diameter45 mm
D - External diameter58 mm
D1 - Outer diameter of washer65 mm
C - Width of bearing, drawn cup or outer ring32 mm
C1 - Thrust bearing height14 mm
C2 - Hole location9 mm
rs - Min fillet radius0,6 mm
Furo de lubrificação no anel externoSim
k - Hole diameter3 mm
Classe de precisãoP0
Peso0,252 kg

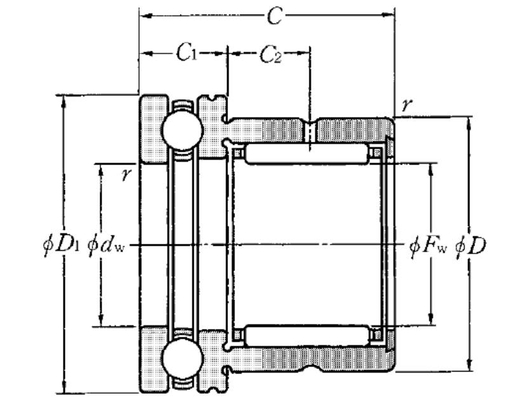

Product classification image
DESEMPENHO
Cr - Dynamic load rating27,6 kN
Ca - Dynamic axial load rating27,9 kN
C0r - Static load rating59 kN
C0a - Static axial load rating69 kN
Nlim - Grease lubrication limit speed3200 tr/min
Nlim - Oil lubrication limit speed4600 tr/min
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação120 °C

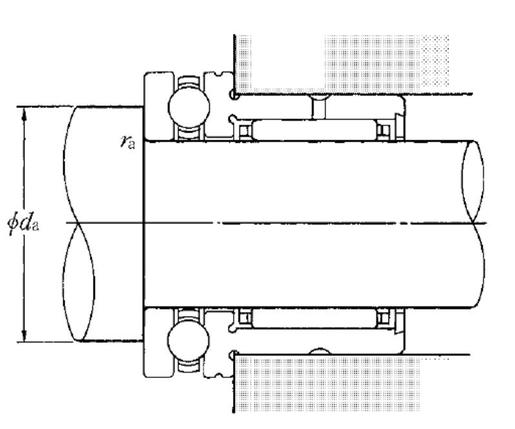

RECOMENDACOES DE BARREIRA
da min - Min shoulder diameter IR57 mm
ras max - Max shaft & housing fillet radius0,6 mm
Product classification image
