NUKRT35/3AS - NTN

NUKRT35/3AS

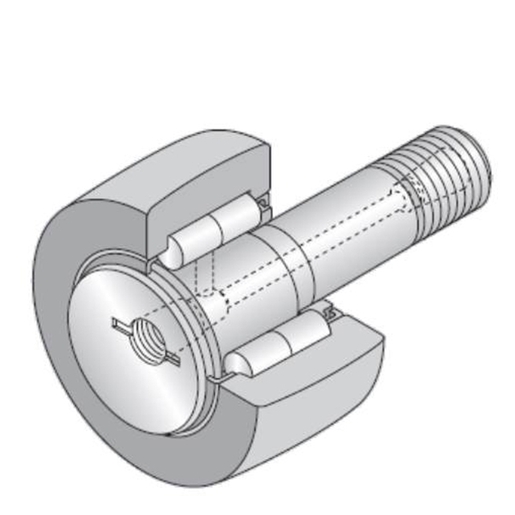

Rolamento de agulha, rolo de leva com eixo, rolo cilíndrico com complemento total, encaixe para chave de fenda, furos rosqueados, blindagem em dois lados, anel externo esférico

Downloads

Arquivo 3D

Folha de dados técnica

FAÇA LOGIN para adicionar produtos à sua cesta
Contate-Nos

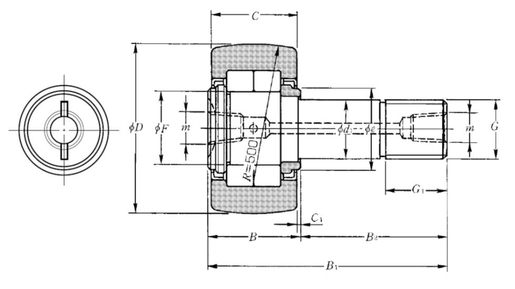

CARACTERÍSTICAS TÉCNICAS
MarcaNTN
D - External diameter35 mm
d1 - Stud diameter16 mm
C - Width of bearing, drawn cup or outer ring18 mm
F - Under roller diameter19 mm
B - Bearing/Inner ring width19,5 mm
B1 - Total stud length52 mm
B2 - Stud rod length32,5 mm
G - Stud thread designationM16X1.5
G1 - Thread length of the stud17 mm
C1 - Distance between roller face and washer face0,8 mm
m - Designation of the threaded lubrication holeRc 1/8
e - Inlet diameter of roller or washer21 mm
R - Track roller radius500 mm
Torque máximo52 N-m
Rolamento com/sem gaiolaSem
Classe de folga radialCN
Classe de precisãoP0
Peso0,165 kg
Product classification image
DESEMPENHO
Cr - Dynamic load rating22,3 kN
C0r - Static load rating25,7 kN
Track load capacity spherical outer ring3,2 kN
Nlim - Grease lubrication limit speed5500 tr/min
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação120 °C
