RNA2206LL/3AS - NTN

RNA2206LL/3AS

Downloads

Arquivo 3D

Folha de dados técnica

FAÇA LOGIN para adicionar produtos à sua cesta
Contate-Nos
CARACTERÍSTICAS TÉCNICAS
MarcaNTN

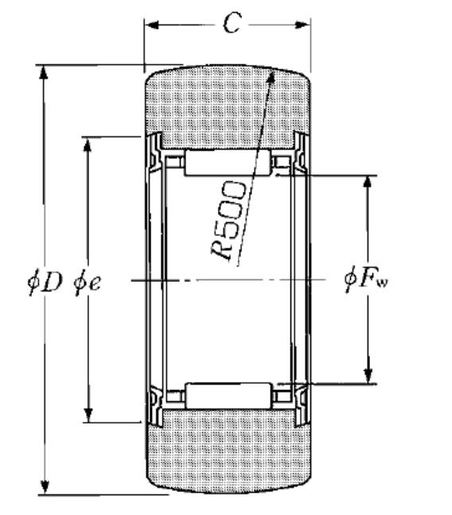

D - External diameter62 mm
Fw - Under rollers diameter35 mm
C - Width of bearing, drawn cup or outer ring19,8 mm
e - Inlet diameter of roller or washer43 mm
R - Track roller radius500 mm
Rolamento com/sem gaiolaCom
Classe de precisãoP0
Peso0,284 kg
Product classification image
DESEMPENHO
Cr - Dynamic load rating21,4 kN
C0r - Static load rating34,5 kN
Track load capacity spherical outer ring6,95 kN
Nlim - Grease lubrication limit speed4300 tr/min
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação100 °C
