Rolos de leva sem anel interno

RNA2209LL/3AS - NTN

RNA2209LL/3AS

Documentation

Product information

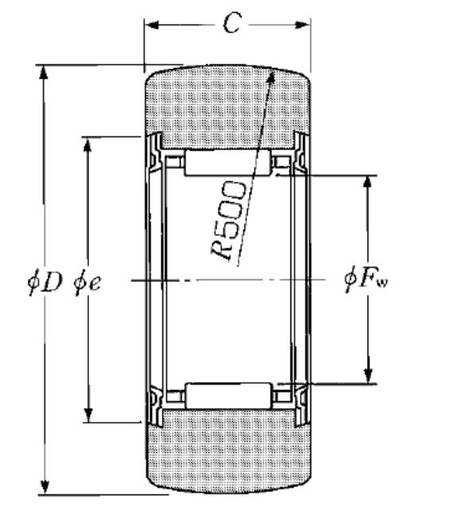

CARACTERÍSTICAS TÉCNICAS
MarcaNTN
D - External diameter85 mm
Fw - Under rollers diameter52 mm
C - Width of bearing, drawn cup or outer ring22,7 mm
e - Inlet diameter of roller or washer62 mm
R - Track roller radius500 mm
Rolamento com/sem gaiolaAvec
Classe de precisãoP0
Peso0,545 kg
undefined
DESEMPENHO
Cr - Dynamic load rating29,3 kN
C0r - Static load rating58,5 kN
Track load capacity spherical outer ring10,4 kN
N lim - Grease lubrication limit speed2900 tr/min
Tmin - Temperatura mín de operação-20 °C
Tmax - Temperatura máx de operação100 °C
