10X22206EAW33EEC3 - SNR

10X22206EAW33EEC3

product label

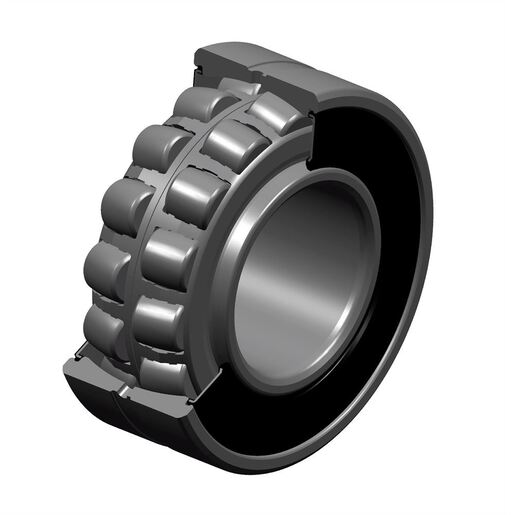

The spherical roller bearing withstands significant loads and misalignments. This type of roller bearing is well adapted to harsh operating conditions: impacts or vibrations (crushers, vibrating screens, heavy handling, etc.). With the ULTAGE design, NTN EUROPE offers as standard, unsurpassed endurance and longevity.

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us

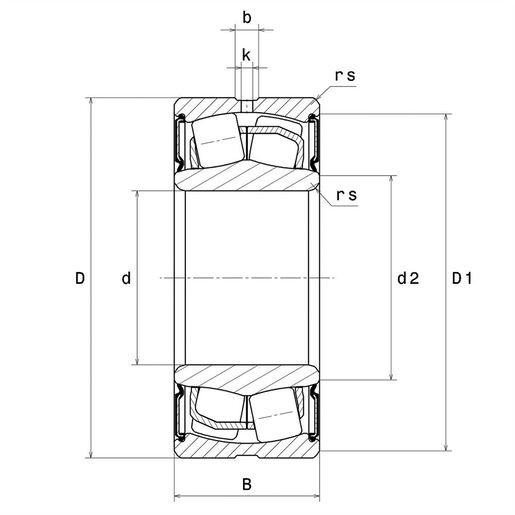

PRODUCT DEFINITION
BrandSNR
d - Internal diameter30 mm
D - External diameter62 mm
B - Bearing/Inner ring width25 mm
d2 - External diameter inner ring35,2 mm
D1 - Inner diameter outer ring56,4 mm
rs - Min fillet radius1 mm
Number of lubrication holes3
b - Groove width4,39 mm
k - Hole diameter2 mm
Radial clearance classC3
Mass0,33 kg
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load75,7 kN
C0 - Static load64,5 kN
Cu - Fatigue limit load7,9 kN
e - Coefficient0.31
Y0 - Static axial load coefficient2.1
Y1 - Lower axial load coefficient2.15
Y2 - Upper axial load coefficient3.2
Nlim - Mechanical Limit Speed3100 tr/min
Tmin - Min operating temperature-20 °C
Tmax - Max operating temperature120 °C
BEARING FREQUENCIES
BPFO - Characteristic outer ring frequency (60 rpm)6,149 Hz
BPFI - Characteristic inner ring frequency (60 rpm)8,851 Hz
FTF - Characteristic cage frequency (60 rpm)0,41 Hz
BSF - Characteristic rolling element frequency (60 rpm)5,257 Hz

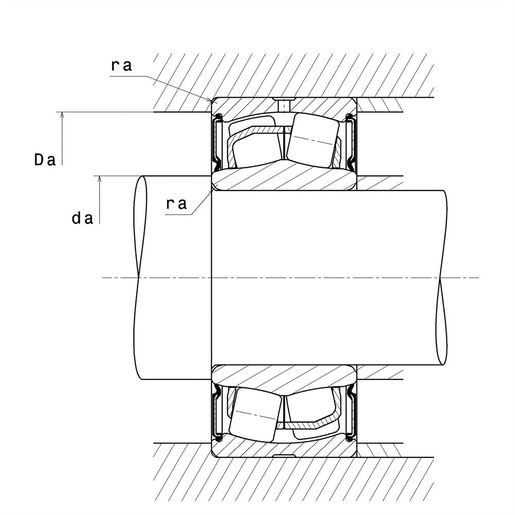

ABUTMENT
da max - Max shoulder diameter IR35,2 mm
da min - Min shoulder diameter IR35,2 mm
db - Min diameter for Sleeve0 mm
Da max - Max shoulder diameter OR56,4 mm
ra max - Max shaft & housing fillet radius1 mm
Product classification image
Calcul factors image
