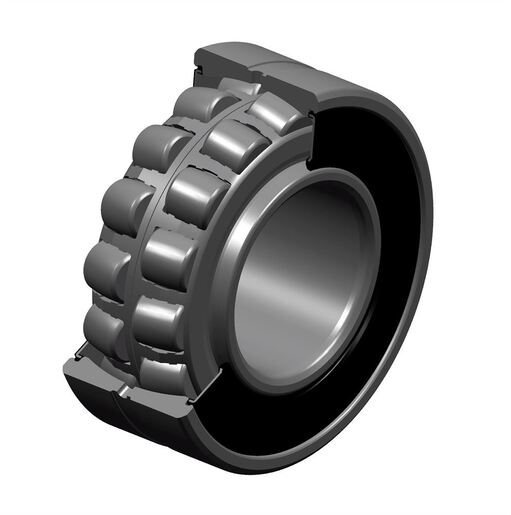

The spherical roller bearing withstands significant loads and misalignments. This type of roller bearing is well adapted to harsh operating conditions: impacts or vibrations (crushers, vibrating screens, heavy handling, etc.). With the ULTAGE design, NTN EUROPE offers as standard, unsurpassed endurance and longevity.
3D file
Technical datasheet

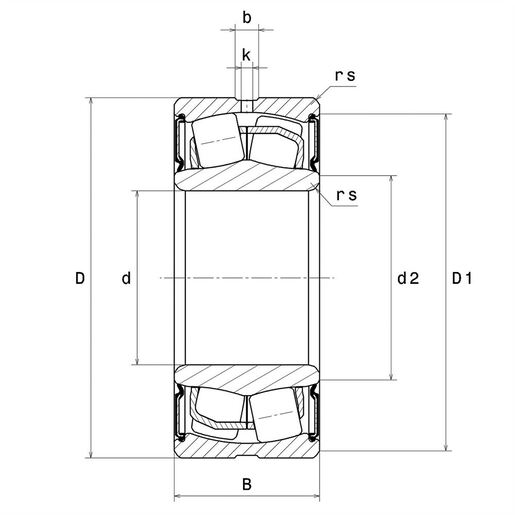

| PRODUCT DEFINITION | |
|---|---|
| Brand | SNR |
| d - Internal diameter | 45 mm |
| D - External diameter | 85 mm |
| B - Bearing/Inner ring width | 28 mm |
| d2 - External diameter inner ring | 52,4 mm |
| D1 - Inner diameter outer ring | 78,7 mm |
| rs - Min fillet radius | 1,1 mm |
| Number of lubrication holes | 3 |
| b - Groove width | 5,83 mm |
| k - Hole diameter | 2,5 mm |
| Radial clearance class | CN |
| Mass | 0,66 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| C - Dynamic load | 121 kN |
| C0 - Static load | 113 kN |
| Cu - Fatigue limit load | 13,8 kN |
| e - Coefficient | 0.26 |
| Y0 - Static axial load coefficient | 2.58 |
| Y1 - Lower axial load coefficient | 2.64 |
| Y2 - Upper axial load coefficient | 3.93 |
| Nlim - Mechanical Limit Speed | 2100 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 120 °C |
| BEARING FREQUENCIES | |
|---|---|
| BPFO - Characteristic outer ring frequency (60 rpm) | 7,155 Hz |
| BPFI - Characteristic inner ring frequency (60 rpm) | 9,845 Hz |
| FTF - Characteristic cage frequency (60 rpm) | 0,421 Hz |
| BSF - Characteristic rolling element frequency (60 rpm) | 6,072 Hz |

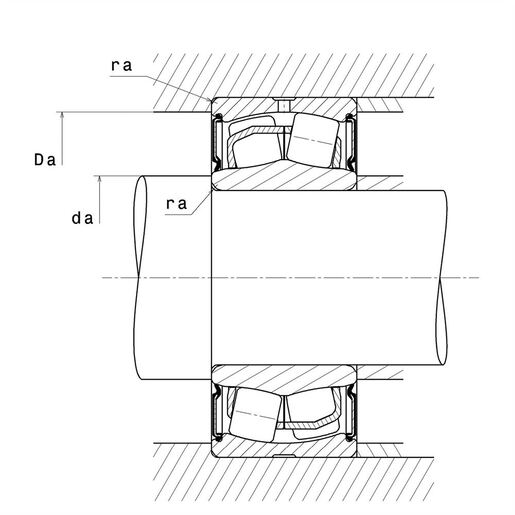

| ABUTMENT | |
|---|---|
| da max - Max shoulder diameter IR | 52,4 mm |
| da min - Min shoulder diameter IR | 52 mm |
| db - Min diameter for Sleeve | 0 mm |
| Da max - Max shoulder diameter OR | 78,7 mm |
| ra max - Max shaft & housing fillet radius | 1 mm |
