1R130X145X35 - NTN

1R130X145X35

Needle roller bearing, inner ring

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

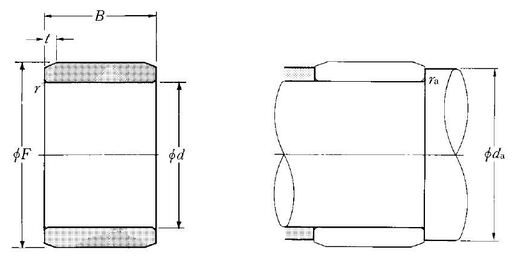

PRODUCT DEFINITION

d - Internal diameter 130 mm
B - Bearing/Inner ring width 35 mm
F - Under roller diameter 145 mm
rs - Min fillet radius 1,1 mm
Lubrication hole on inner ring No
t - IR chamfer length 3 mm
Precision class P0
Mass 0,855 kg
Brand NTN

ABUTMENT

da min - Min shoulder diameter IR 136,5 mm
ras max - Max shaft & housing fillet radius 1 mm
