1R140X155X42 - NTN

1R140X155X42

Needle roller bearing, inner ring

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

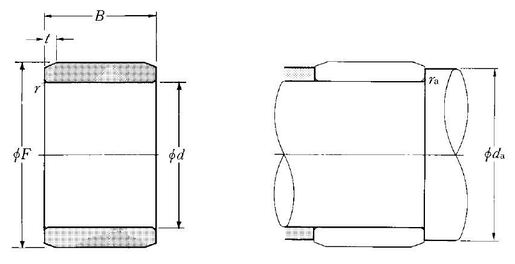

PRODUCT DEFINITION

d - Internal diameter 140 mm
B - Bearing/Inner ring width 42 mm
F - Under roller diameter 155 mm
rs - Min fillet radius 1,5 mm
Lubrication hole on inner ring No
t - IR chamfer length 3 mm
Precision class P0
Mass 1,1 kg
Brand NTN

ABUTMENT

da min - Min shoulder diameter IR 148 mm
ras max - Max shaft & housing fillet radius 1,5 mm
