1R8X12X10 - NTN

1R8X12X10

Needle roller bearing, inner ring

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

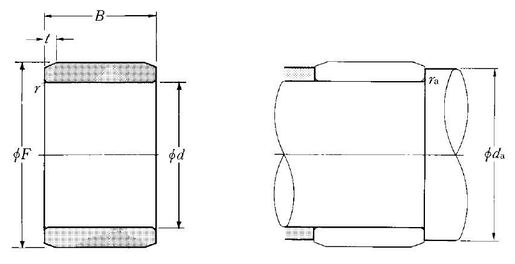

PRODUCT DEFINITION

d - Internal diameter 8 mm
B - Bearing/Inner ring width 10 mm
F - Under roller diameter 12 mm
rs - Min fillet radius 0,3 mm
Lubrication hole on inner ring No
t - IR chamfer length 1 mm
Precision class P0
Mass 0,005 kg
Brand NTN

ABUTMENT

da min - Min shoulder diameter IR 10 mm
ras max - Max shaft & housing fillet radius 0,3 mm
