1R95X105X36 - NTN

1R95X105X36

Needle roller bearing, inner ring

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

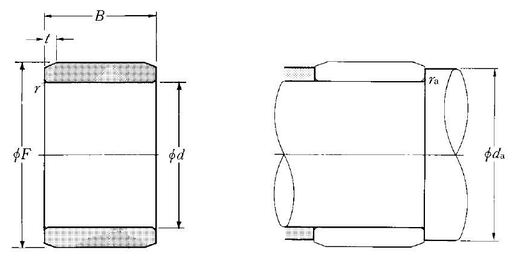

PRODUCT DIMENSIONS

Internal diameter (d) 95 mm
Bearing/Inner ring width (B) 36 mm
Under roller diameter F 105 mm
Min fillet radius (rs) 1 mm
Lubrication hole on inner ring No
IR chamfer length (t) 2,5 mm
Precision class P0
Mass 0,43 kg
Brand NTN

ABUTMENT

Min shoulder diameter IR (da min) 100 mm
Max shaft & housing fillet radius (ras max) 1 mm
