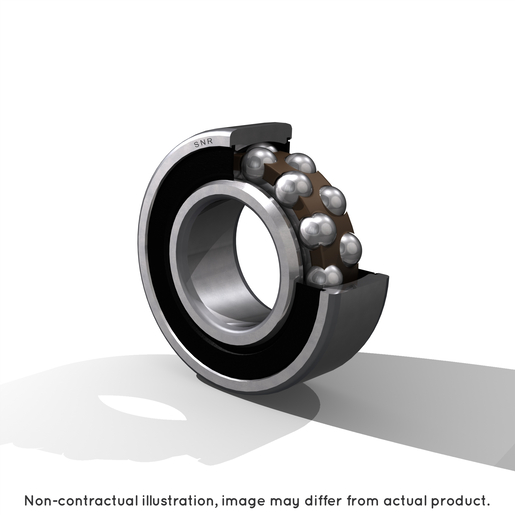

Self-aligning ball bearing, polyamide cage, tapered bore, friction seals on both sides
Log in
To add this product to your basketDocumentation
Product information

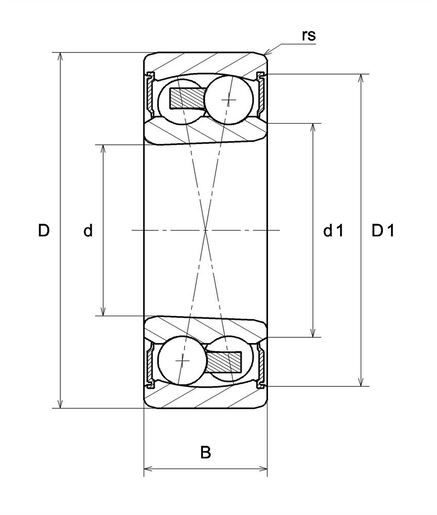

| PRODUCT DEFINITION | |
|---|---|
| Brand | SNR |
| d - Internal diameter | 55 mm |
| D - External diameter | 100 mm |
| B - Bearing/Inner ring width | 25 mm |
| d1 - External diameter inner ring | 67,3 mm |
| D1 - Inner diameter outer ring | 88,8 mm |
| rs - Min fillet radius | 1,5 mm |
| Associated sleeve reference | H311 |
| Radial clearance class | CN |
| Precision class | P0 |
| Mass | 0,855 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| C - Dynamic load | 26,8 kN |
| C0 - Static load | 10 kN |
| Cu - Fatigue limit load | 0,45 kN |
| e - Coefficient | 0.19 |
| Y0 - Static axial load coefficient | 3.47 |
| Y1 - Lower axial load coefficient | 3.31 |
| Y2 - Upper axial load coefficient | 5.12 |
| N lim - Mechanical Limit Speed | 3600 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 120 °C |
| BEARING FREQUENCIES | |
|---|---|
| BPFO - Over rolling frequency on outer ring (60 rpm) | 8,249 Hz |
| BPFI - Over rolling frequency on inner (60 rpm) | 10,751 Hz |
| BSF - Over rolling frequency on rolling element (60 rpm) | 7,401 Hz |
| BRF - Rotational frequency – rolling element (60 rpm) | 3,701 Hz |
| FTF - Rotational frequency - cage (60 rpm) | 0,434 Hz |

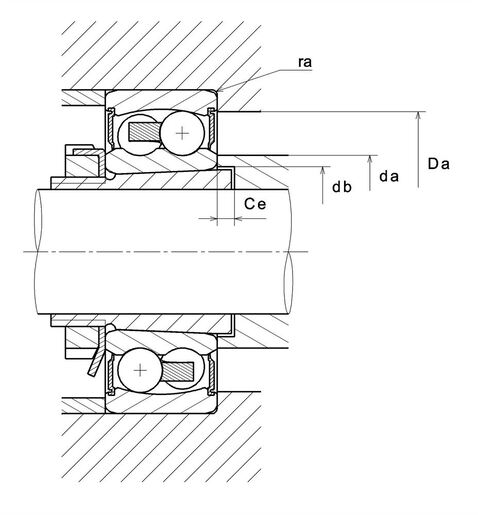

| ABUTMENT | |
|---|---|
| da min - Min shoulder diameter IR | 63 mm |
| da max - Max shoulder diameter IR | 65 mm |
| db - Min diameter for Sleeve | 60 mm |
| Ce - Min length fro Sleeve | 10 mm |
| Da max - Max shoulder diameter OR | 92 mm |
| ra max - Max shaft & housing fillet radius | 1,5 mm |
