22222EAW33 - SNR

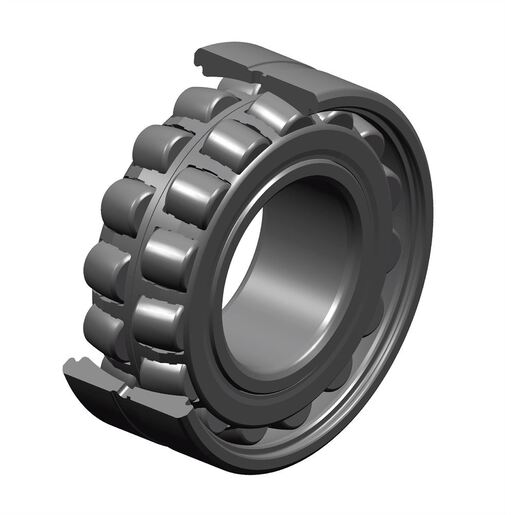

Spherical roller bearing, pressed steel cage, groove and lubrication holes on outer ring

product label

The spherical roller bearing withstands significant loads and misalignments. This type of roller bearing is well adapted to harsh operating conditions: impacts or vibrations (crushers, vibrating screens, heavy handling, etc.). With the ULTAGE design, NTN-SNR offers as standard, unsurpassed endurance and longevity.


CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us

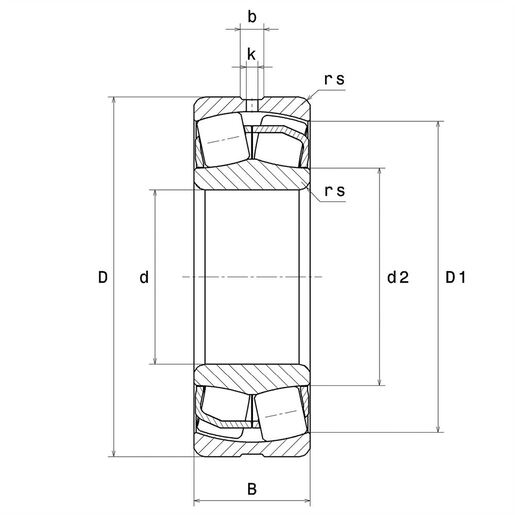

Internal diameter (d) 110 mm
External diameter (D) 200 mm
Bearing/Inner ring width (B) 53 mm
External diameter inner ring (d2) 130,1 mm
Inner diameter outer ring (D1) 178,4 mm
Min fillet radius (rs) 2,1 mm
Number of lubrication holes 3
Groove width (b) 11,73 mm
Hole diameter (k) 6 mm
Coef (e) 0.25
Lower axial load coef (Y1) 2.69
Upper axial load coef (Y2) 4
Static axial load coef (Y0) 2.63
Radial clearance class CN
Mass 6,929 kg
Brand SNR
Product classification image


Dynamic load (C) 602 kN
Static load (C0) 643 kN
Fatigue limit load (Cu) 68,4 kN
Reference thermal speed (Nref) 3300 tr/min
Mechanical Limit Speed (Nlim) 4100 tr/min
Min operating temperature (Tmin) -40 °C
Max operating temperature (Tmax) 200 °C


Max shoulder diameter IR (da max) 0 mm
Min shoulder diameter IR (da min) 122 mm
Max shoulder diameter OR (Da max) 188 mm
Max shaft & housing fillet radius (ra max) 2 mm
Product classification image
Calcul factors image
