| PRODUCT DEFINITION | |
|---|---|
| Brand | SNR |

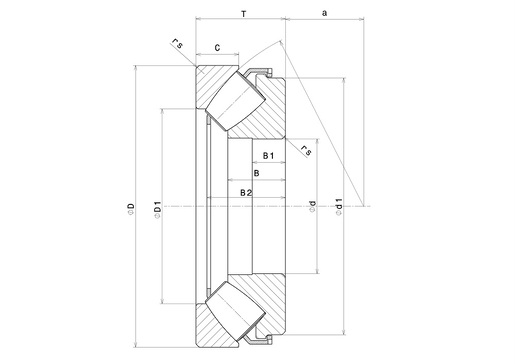

| d - Internal diameter of shaft washer | 150 mm |
| D - Housing washer outer diameter | 250 mm |
| D1 - Inner diameter housing washer | 189,6 mm |
| d1 - External diameter shaft washer | 222,5 mm |
| T - Thrust bearing height | 60 mm |
| C - Housing washer width | 28 mm |
| B - Shaft washer width | 38 mm |
| B2 - Distance large face of shaft washer / metal cage | 53,8 mm |
| a - Charge load application point | 87 mm |
| Cage material | Tôle |
| Mass | 10,9 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| Ca - Dynamic axial load rating | 878 kN |
| C0a - Static axial load rating | 2950 kN |
| Cua - Limit axial load rating | 292 kN |
| N lim - Oil lubrication limit speed | 1400 tr/min |
| N ref - Reference thermal speed | 1300 tr/min |
| N lim - Mechanical Limit Speed | 2400 tr/min |
| Tmin - Min operating temperature | -40 °C |
| Tmax - Max operating temperature | 200 °C |
| BEARING FREQUENCIES | |
|---|---|
| BPFO - Over rolling frequency on outer ring (60 rpm) | 9,591 Hz |
| BPFI - Over rolling frequency on inner (60 rpm) | 11,409 Hz |
| BSF - Over rolling frequency on rolling element (60 rpm) | 7,285 Hz |
| BRF - Rotational frequency – rolling element (60 rpm) | 3,643 Hz |
| FTF - Rotational frequency - cage (60 rpm) | 0,457 Hz |

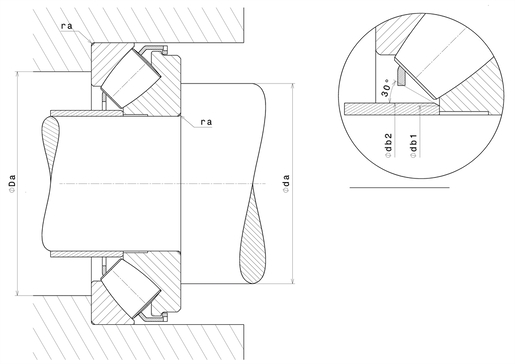

| ABUTMENT | |
|---|---|
| ras max - Max shaft & housing fillet radius | 2 mm |
| rs - Min fillet radius | 2,1 mm |
| Da max - Max shoulder diameter OR | 219 mm |
| da min - Min shoulder diameter IR | 195 mm |
| db1 - Maximum diameter of the shaft washer shoulder | 158 mm |
| db2 - Max spacer diameter | 163 mm |
