Log in To add this product to your basket Documentation Product information PRODUCT DEFINITION Brand SNR d - Internal diameter of shaft washer 80 mm D - Housing washer outer diameter 170 mm D1 - Inner diameter housing washer 117 mm d1 - External diameter shaft washer 150,8 mm T - Thrust bearing height 54 mm C - Housing washer width 24 mm B - Shaft washer width 35 mm B2 - Distance large face of shaft washer / metal cage 50 mm a - Charge load application point 50 mm Cage material Tôle Mass 5,68 kg
PRODUCT PERFORMANCE Ca - Dynamic axial load rating 604 kN C0a - Static axial load rating 1640 kN Cua - Limit axial load rating 188 kN N lim - Oil lubrication limit speed 2000 tr/min N ref - Reference thermal speed 2100 tr/min N lim - Mechanical Limit Speed 3900 tr/min Tmin - Min operating temperature -40 °C Tmax - Max operating temperature 200 °C
BEARING FREQUENCIES BPFO - Over rolling frequency on outer ring (60 rpm) 6,143 Hz BPFI - Over rolling frequency on inner (60 rpm) 7,857 Hz BSF - Over rolling frequency on rolling element (60 rpm) 4,81 Hz BRF - Rotational frequency – rolling element (60 rpm) 2,405 Hz FTF - Rotational frequency - cage (60 rpm) 0,439 Hz

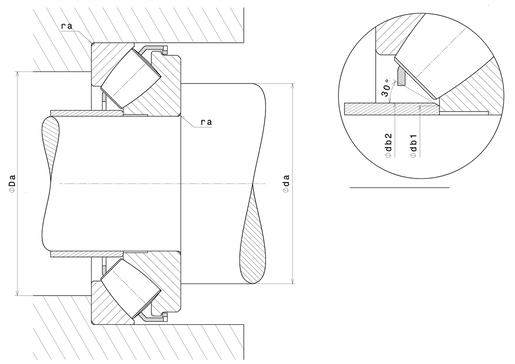

ABUTMENT ras max - Max shaft & housing fillet radius 2 mm rs - Min fillet radius 2,1 mm Da max - Max shoulder diameter OR 141 mm da min - Min shoulder diameter IR 120 mm db1 - Maximum diameter of the shaft washer shoulder 88 mm db2 - Max spacer diameter 88 mm
