5204ZZG15 - SNR

5204ZZG15

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

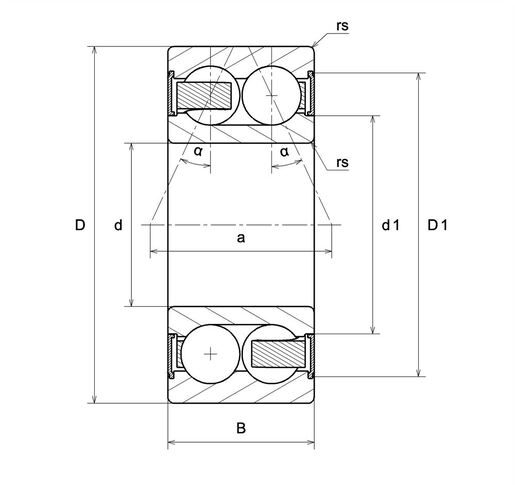

PRODUCT DIMENSIONS

Internal diameter (d) 20 mm
External diameter (D) 47 mm
Bearing/Inner ring width (B) 20,6 mm
External diameter inner ring d1 28,8 mm
Inner diameter outer ring (D1) 41,9 mm
Charge load application point a 24,2 mm
Contact angle α 25 °
Min fillet radius (rs) 1 mm
Radial clearance class CN
Precision class P0
Mass 0,14 kg
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load (C) 19,1 kN
Static load (C0) 12,5 kN
Fatigue limit load (Cu) 0,81 kN
Coefficient f0 13.7
Reference thermal speed (Nref) 12000 tr/min
Mechanical Limit Speed (Nlim) 12000 tr/min
Min operating temperature (Tmin) -20 °C
Max operating temperature (Tmax) 120 °C

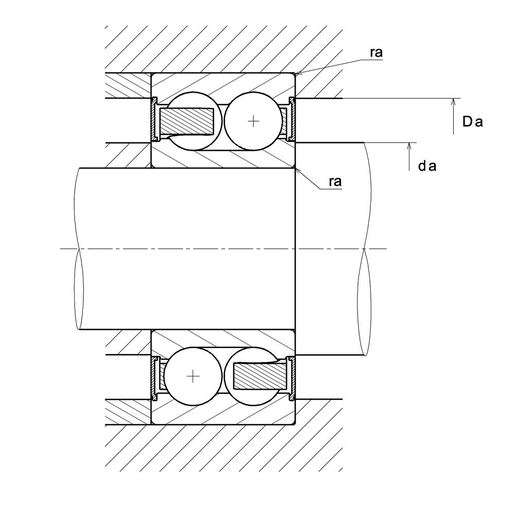

ABUTMENT

Min shoulder diameter IR (da min) 25 mm
Max shoulder diameter IR (da max) 28,8 mm
Max shoulder diameter OR (Da max) 42 mm
Max shaft & housing fillet radius (ra max) 1 mm
