5205NREEG15 - SNR

5205NREEG15

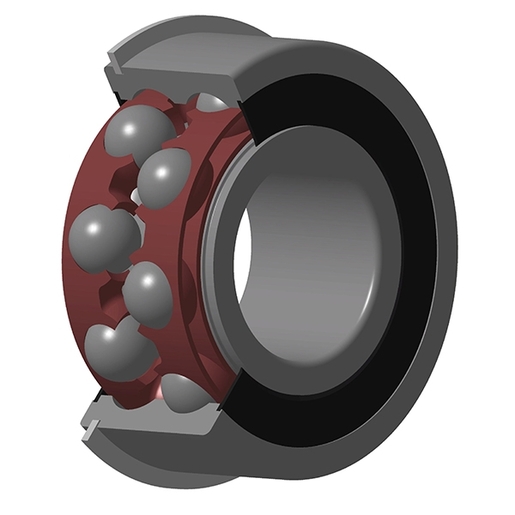

Double row angular contact ball bearing, polyamide cage, snap ring and groove on outer diameter, contact seals on both sides

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

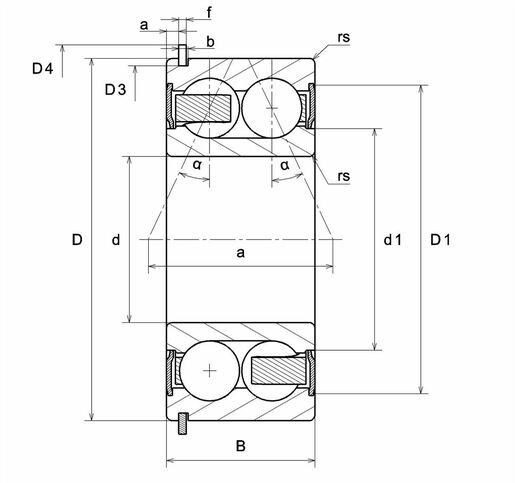

PRODUCT DIMENSIONS

Internal diameter d 25 mm
External diameter D 52 mm
Bearing/Inner ring width(B) 20,6 mm
External diameter inner ring d1 33,5 mm
Inner diameter outer ring D1 46,2 mm
Charge load application point a 26,5 mm
Contact angle α 25 °
Min position Groove a min 2,31 mm
Max position groove a max 2,46 mm
Min fillet radius rs 1 mm
Min fillet radius rNs 0,6 mm
Max bottom groove diameter D3 49,73 mm
Min groove width b min 1,35 mm
Max groove width b max 1,65 mm
Max bottom groove radius r0 max 0,4 mm
Max outside diameter of assembled stop ring D4 max 57,9 mm
Stop ring thickness f 1,07 mm
Snap ring reference R 52
Radial clearance class CN
Precision class P0
Mass 0,159 kg
Brand SNR
Product classification image

PRODUCT PERFORMANCE

Dynamic load, C 20,6 kN
Static load, C0 14,7 kN
Fatigue limit load, Cu 0,91 kN
Coefficient f0 14.3
Mechanical Limit Speed Nlim 8600 tr/min
Min operating temperature, Tmin -20 °C
Max operating temperature, Tmax 120 °C
Characteristic cage frequency, FTF 0,408 Hz
Characteristic rolling element frequency, BSF 4,746 Hz
Characteristic outer ring frequency, BPF0 3,67 Hz
Characteristic inner ring frequency, BPFI 5,33 Hz

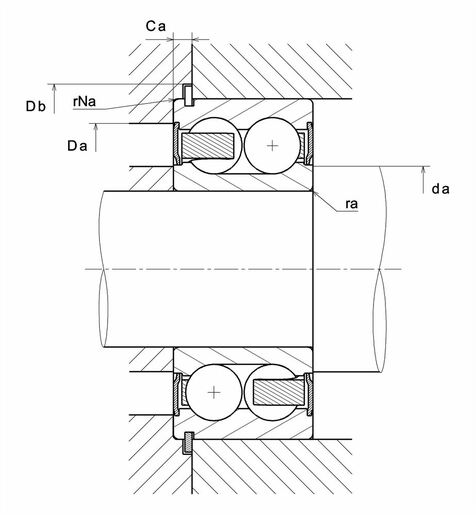

ABUTMENT

Min shoulder diameter IR da min 30 mm
Max shoulder diameter IR da max 33,5 mm
Max shoulder diameter OR Da max 47 mm
Mini segment position Ca min 3,33 mm
Max segment position Ca max 3,58 mm
Max shaft & housing fillet radius ra max 1 mm
Max fillet radius on segment side rNa max 0,6 mm
Min stop ring position diameter Db min 58,6 mm
