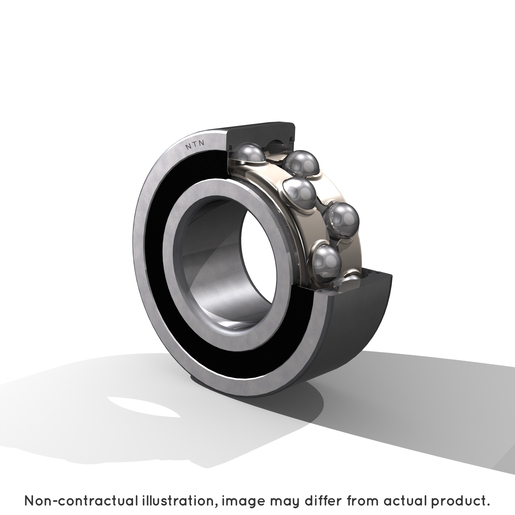

Log in To add this product to your basket Documentation Product information PRODUCT DEFINITION Brand NTN d - Internal diameter 30 mm D - External diameter 62 mm B - Bearing/Inner ring width 23,8 mm a - Charge load application point 36,5 mm α - Contact angle 30 ° rs - Min fillet radius 1 mm Radial clearance class CN Precision class P0 Mass 0,301 kg
PRODUCT PERFORMANCE C - Dynamic load 26,1 kN C0 - Static load 19,7 kN Cu - Fatigue limit load 1,3 kN N lim - Oil lubrication limit speed 9500 tr/min N lim - Grease lubrication limit speed 7100 tr/min Tmin - Min operating temperature -25 °C Tmax - Max operating temperature 110 °C
ABUTMENT da min - Min shoulder diameter IR 36 mm Da max - Max shoulder diameter OR 56 mm ra max - Max shaft & housing fillet radius 1 mm
