6000LLUCM/5K - NTN

6000LLUCM/5K

Deep groove ball bearing, radial contact, pressed steel cage, contact seals on both sides

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

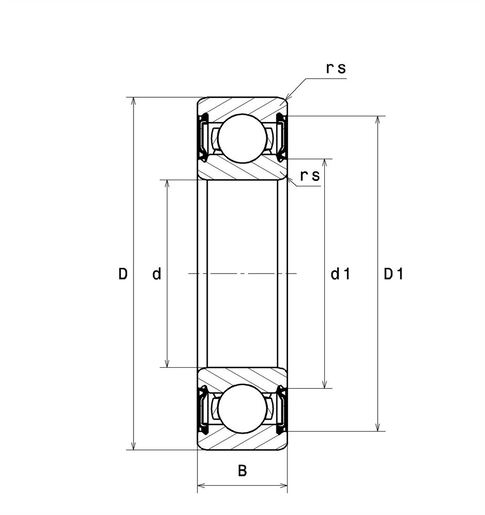

PRODUCT DEFINITION

d - Internal diameter 10 mm
D - External diameter 26 mm
B - Bearing/Inner ring width 8 mm
rs - Min fillet radius 0,3 mm
Radial clearance class CM
Mass 0,019 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

C - Dynamic load 5,05 kN
C0 - Static load 1,96 kN
Cu - Fatigue limit load 0,138 kN
f0 - Coefficient 12.4
Nlim - Grease lubrication limit speed 21000 tr/min
Tmin - Min operating temperature -25 °C
Tmax - Max operating temperature 110 °C

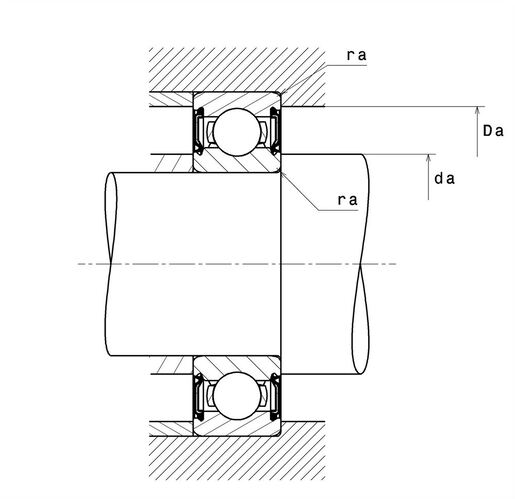

ABUTMENT

da min - Min shoulder diameter IR 12 mm
da max - Max shoulder diameter IR 13,5 mm
Da max - Max shoulder diameter OR 24 mm
ra max - Max shaft & housing fillet radius 0,3 mm
Product classification image
Calcul factors image
