6000LU - NTN

6000LU

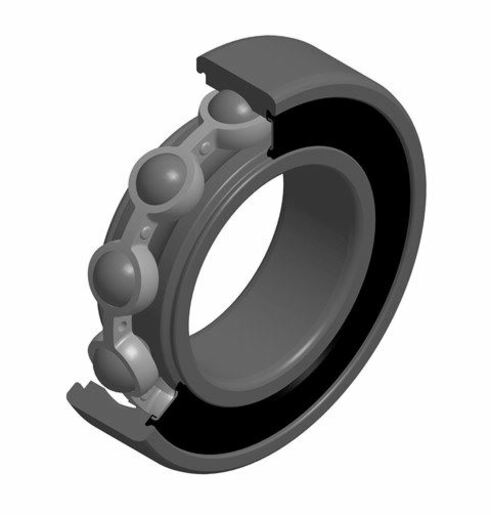

Deep groove ball bearing, radial contact, pressed steel cage, contact seal on one side

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

Downloads

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

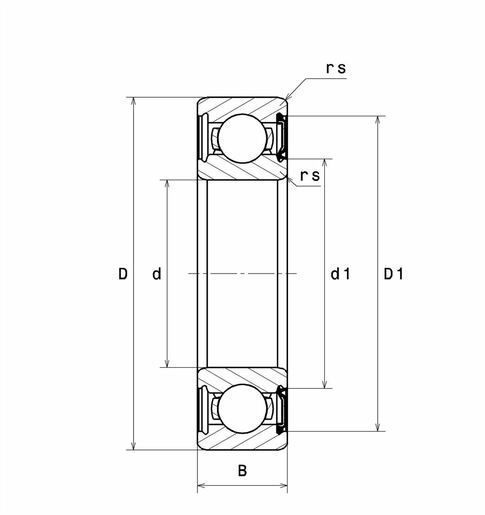

PRODUCT DIMENSIONS

Internal diameter d 10 mm
External diameter D 26 mm
Bearing/Inner ring width(B) 8 mm
Min fillet radius rs 0,3 mm
Radial clearance class CN
Mass 0,019 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Dynamic load, C 5,05 kN
Static load, C0 1,96 kN
Fatigue limit load, Cu 0,138 kN
Coefficient f0 12.4
Nlim (grease) 21000 tr/min
Min operating temperature, Tmin -25 °C
Max operating temperature, Tmax 110 °C
Characteristic cage frequency, FTF 0,366 Hz
Characteristic rolling element frequency, BSF 3,47 Hz
Characteristic outer ring frequency, BPF0 2,563 Hz
Characteristic inner ring frequency, BPFI 4,437 Hz

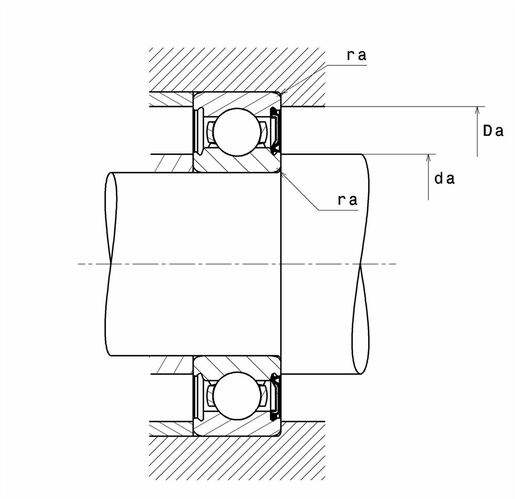

ABUTMENT

Min shoulder diameter IR da min 12 mm
Max shoulder diameter IR da max 13,5 mm
Max shoulder diameter OR Da max 24 mm
Max shaft & housing fillet radius ra max 0,3 mm
Product classification image
Calcul factors image
