6006LLUCM/5K - NTN


Deep groove ball bearing, radial contact, pressed steel cage, contact seals on both sides

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.


Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us

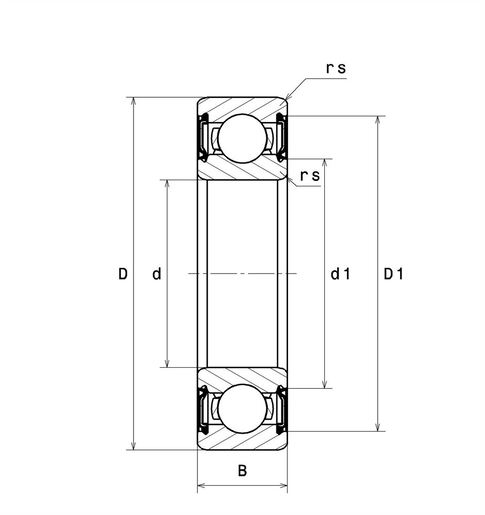

Internal diameter d 30 mm
External diameter D 55 mm
Bearing/Inner ring width(B) 13 mm
Min fillet radius rs 1 mm
Radial clearance class CM
Mass 0,116 kg
Brand NTN
Product classification image


Dynamic load, C 14,7 kN
Static load, C0 8,3 kN
Fatigue limit load, Cu 0,65 kN
Coefficient f0 14.8
Nlim (grease) 7700 tr/min
Min operating temperature, Tmin -25 °C
Max operating temperature, Tmax 110 °C
Characteristic cage frequency, FTF 0,417 Hz
Characteristic rolling element frequency, BSF 5,853 Hz
Characteristic outer ring frequency, BPF0 4,586 Hz
Characteristic inner ring frequency, BPFI 6,414 Hz

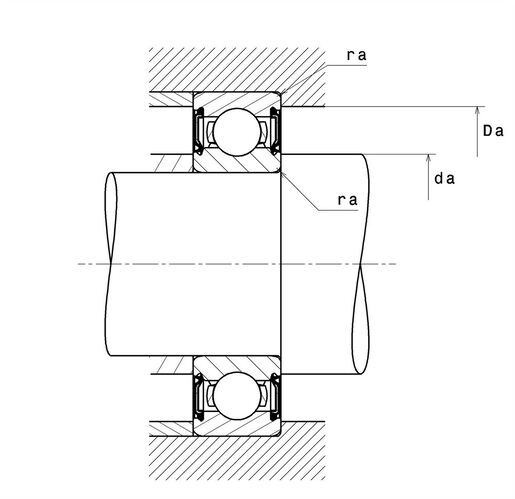

Min shoulder diameter IR da min 35 mm
Max shoulder diameter IR da max 37 mm
Max shoulder diameter OR Da max 50 mm
Max shaft & housing fillet radius ra max 1 mm
