6010ZZCM/5K - NTN

6010ZZCM/5K

Deep groove ball bearing, radial contact, pressed steel cage, shields on both sides

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

Downloads

3D file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us

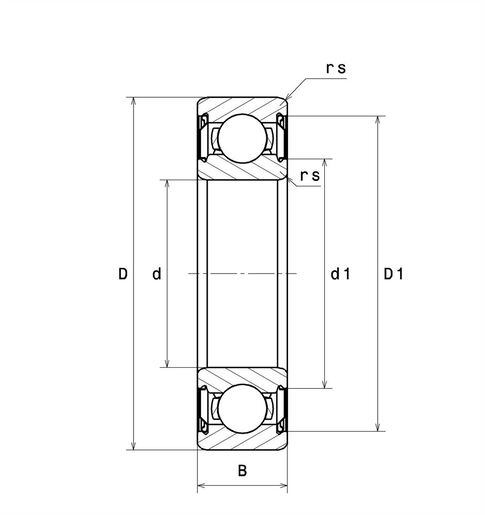

PRODUCT DEFINITION
BrandNTN
d - Internal diameter50 mm
D - External diameter80 mm
B - Bearing/Inner ring width16 mm
rs - Min fillet radius1 mm
Radial clearance classCM
Mass0,261 kg
Product classification image
PRODUCT PERFORMANCE
C - Dynamic load24,2 kN
C0 - Static load16,6 kN
Cu - Fatigue limit load1,24 kN
f0 - Coefficient15.5
Nlim - Grease lubrication limit speed8400 tr/min
Tmin - Min operating temperature-40 °C
Tmax - Max operating temperature150 °C

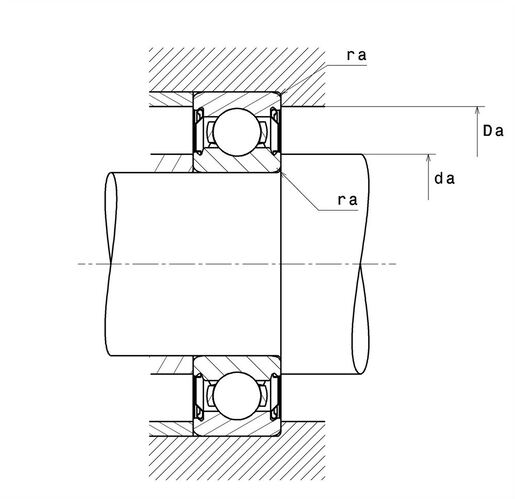

ABUTMENT
da min - Min shoulder diameter IR55 mm
Da max - Max shoulder diameter OR75 mm
ra max - Max shaft & housing fillet radius1 mm
Product classification image
Calcul factors image
