Deep groove ball bearing, radial contact, pressed steel cage, contact seal on one side
The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options : sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

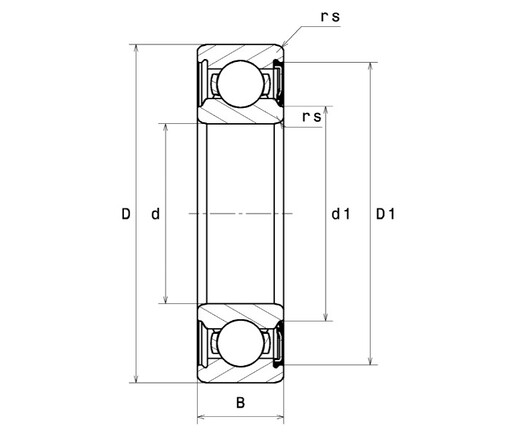

Log in To add this product to your basket Documentation Product information PRODUCT DEFINITION Brand SNR d - Internal diameter 60 mm D - External diameter 95 mm B - Bearing/Inner ring width 18 mm d1 - External diameter inner ring 70,6 mm D1 - Inner diameter outer ring 87,4 mm rs - Min fillet radius 1,1 mm Radial clearance class CN Mass 0,413 kg
PRODUCT PERFORMANCE C - Dynamic load 31 kN C0 - Static load 23,2 kN Cu - Fatigue limit load 1,05 kN f0 - Coefficient 15.6 N lim - Mechanical Limit Speed 4100 tr/min Tmin - Min operating temperature -20 °C Tmax - Max operating temperature 120 °C
BEARING FREQUENCIES BPFO - Over rolling frequency on outer ring (60 rpm) 6,068 Hz BPFI - Over rolling frequency on inner (60 rpm) 7,932 Hz BSF - Over rolling frequency on rolling element (60 rpm) 7,377 Hz BRF - Rotational frequency – rolling element (60 rpm) 3,689 Hz FTF - Rotational frequency - cage (60 rpm) 0,433 Hz

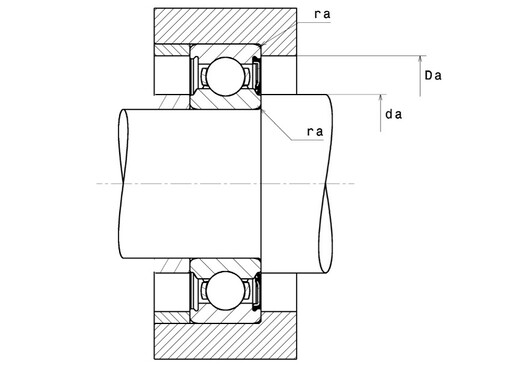

ABUTMENT da min - Min shoulder diameter IR 66,5 mm da max - Max shoulder diameter IR 70,6 mm Da max - Max shoulder diameter OR 88,5 mm ra max - Max shaft & housing fillet radius 1 mm
