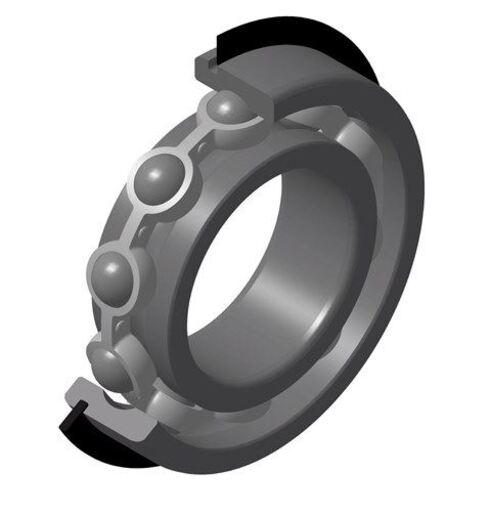

Deep groove ball bearing, radial contact, pressed steel cage, snap ring & groove on outer diameter, open
The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options : sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

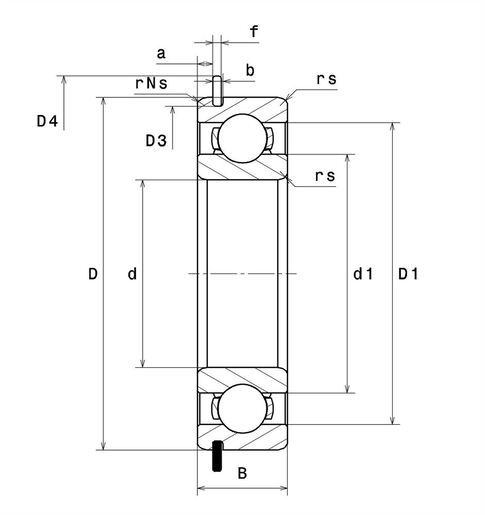

Log in To add this product to your basket Documentation Product information PRODUCT DEFINITION Brand NTN d - Internal diameter 65 mm D - External diameter 100 mm B - Bearing/Inner ring width 18 mm a min - Min position Groove 2,67 mm a max - Max position groove 2,87 mm rs - Min fillet radius 1,1 mm rNs - Min fillet radius 0,5 mm D3 - Max bottom groove diameter 96,8 mm b min - Min groove width 2,7 mm b max - Max groove width 3 mm r0 max - Max bottom groove radius 0,6 mm D4 max - Max outer diameter of assembled stop ring 106,5 mm f - Stop ring thickness 2,46 mm Snap ring reference R100 Radial clearance class C3 Mass 0,421 kg
PRODUCT PERFORMANCE C - Dynamic load 34 kN C0 - Static load 25,2 kN Cu - Fatigue limit load 1,83 kN f0 - Coefficient 15.8 N lim - Oil lubrication limit speed 7700 tr/min N lim - Grease lubrication limit speed 6500 tr/min Tmin - Min operating temperature -40 °C Tmax - Max operating temperature 120 °C

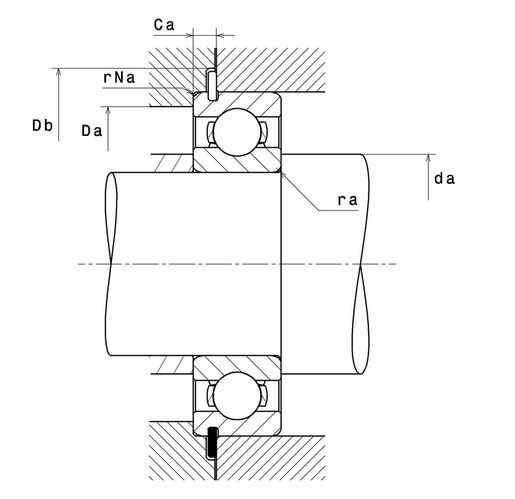

ABUTMENT da min - Min shoulder diameter IR 71,5 mm Da max - Max shoulder diameter OR 93,5 mm ra max - Max shaft & housing fillet radius 1 mm rNa max - Max fillet radius on segment side 0,5 mm Ca min - Mini segment position 5,03 mm Ca max - Max segment position 5,33 mm Db min - Min stop ring position diameter 108 mm
