6028LLU/2AS - NTN

6028LLU/2AS

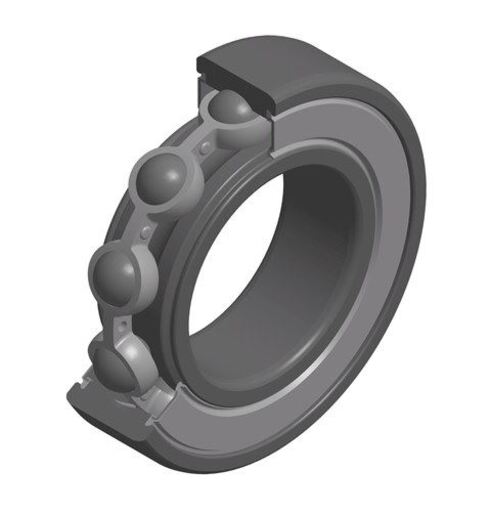

Deep groove ball bearing, radial contact, pressed steel cage, contact seals on both sides

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

Downloads

CAD file

Technical datasheet

PLEASE LOGIN to add products to your basket
Contact us
Specs

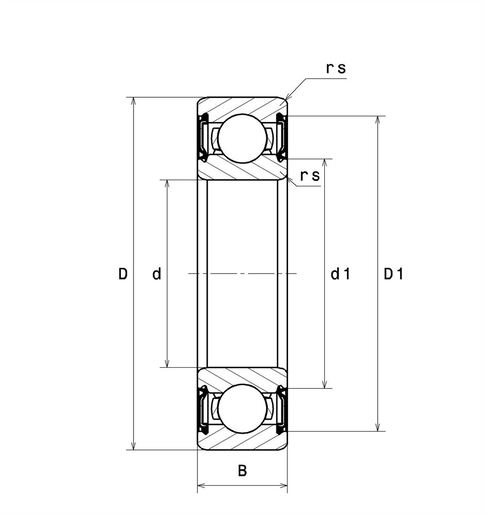

PRODUCT DIMENSIONS

Internal diameter (d) 140 mm
External diameter (D) 210 mm
Bearing/Inner ring width (B) 33 mm
Min fillet radius (rs) 2 mm
Radial clearance class CN
Mass 3,35 kg
Brand NTN
Product classification image

PRODUCT PERFORMANCE

Dynamic load (C) 122 kN
Static load (C0) 109 kN
Fatigue limit load (Cu) 5,85 kN
Coefficient f0 15.9
Nlim (grease) 1800 tr/min
Min operating temperature (Tmin) -25 °C
Max operating temperature (Tmax) 110 °C

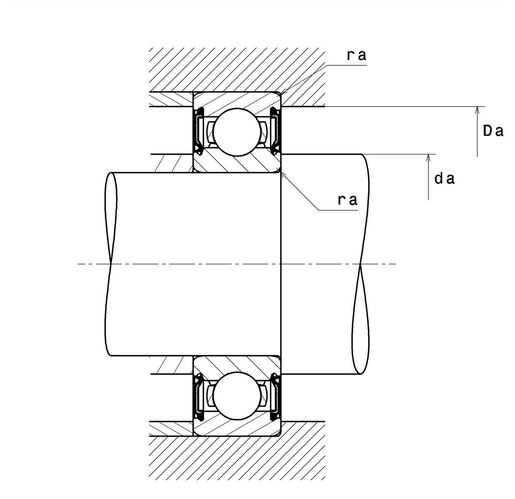

ABUTMENT

Min shoulder diameter IR (da min) 149 mm
Max shoulder diameter OR (Da max) 201 mm
Max shaft & housing fillet radius (ra max) 2 mm
Product classification image
Calcul factors image
